A Fully Updated 2023 H12-831-ENU Exam Dumps – PDF Questions and Testing Engine

Easy Success Huawei H12-831-ENU Exam in First Try

Huawei H12-831-ENU (HCIP-Datacom) certification exam is designed for individuals who are looking to enhance their skills and knowledge in the field of data communication. HCIP-Datacom certification is ideal for network engineers, administrators, and other IT professionals who are involved in designing, deploying, and managing data communication systems. The HCIP-Datacom certification is a globally recognized credential that demonstrates an individual’s expertise in Huawei’s data communication technologies.

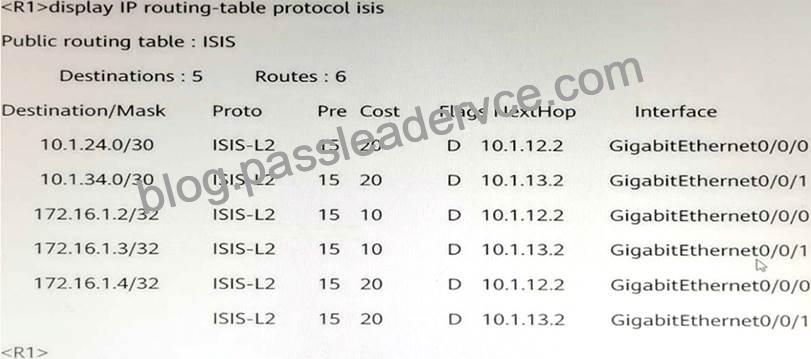

Q102. What can we infer from this graph? (Multiple choice)

There is a route entry on R1 to 172.16.1.4/32

There is no IS-IS routing entry in R1’s IP routing table

There are 6 routing entries generated by IS-IS in the IP routing table of R1

R1 has no route entry to 172.16.1.4/32

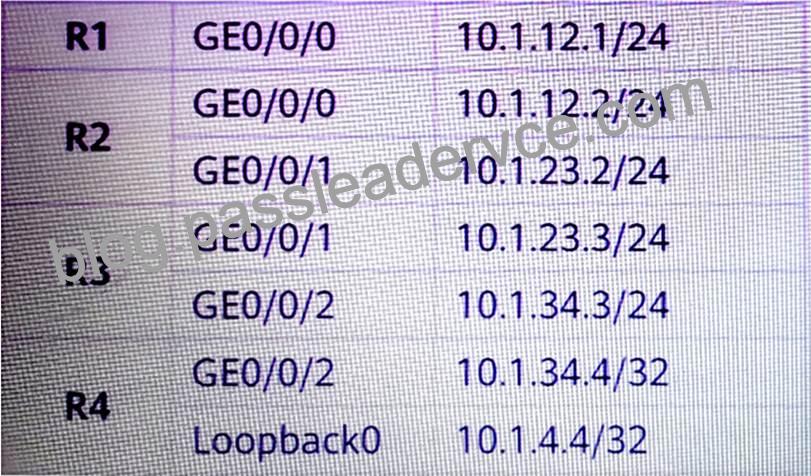

Q103. OSPF is deployed in a campus to implement network interconnection, and OSPF is also enabled on the GE0/0/2 interface of R3. Area1 is deployed as an NSSA area, and the device addresses are shown in the figure.

An engineer configures a static route on R3 to access the loopback interface address of R4, and imports the static route in the OSPF process.
At this time, in the Type5LSA received by R1, the forwarding address (FA) is ( ). (Note: Please fill in the IP address without mask)

10.1.34.3

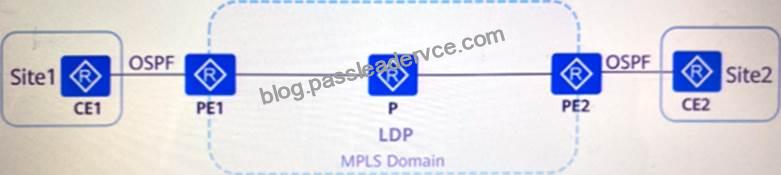

Q104. As shown in the figure, private network routing information is exchanged between PE1 and PE2 and their respective CEs through OSPF, and the same DomainID is configured on both PE1 and PE2. When routes are imported from BGP to OSPF on PE2, which of the following types of LSAs are possibly delivered to CE2? (Multiple choice)

Type1 LSA

Type3 LSA

Type7 LSA

Type5 LSA

Q105. MACsec can provide users with secure MAC layer data transmission and reception services.
Which of the following is not a service provided by MACsec?

Integrity Check

Controllability Check

User Data Encryption

Data source authenticity verification

Q106. A company consists of a head office and two branch offices, and uses MPLS VPN technology to transmit private network routes. In the networking mode of HuB&Spok. Branches can only send and receive routes to and from the head office, and branches cannot directly send and receive routes to each other. In order to achieve the above requirements, which of the following schemes can the RT settings be? (Multiple choice)

Head Office: Import Target: 1:1, 2:2; Export Target: 3:3. Branch 1: Import Target: 3:3; Export Target: 1:1. Branch 2: Import Target: 3:3; Export Target: 2:2.

Head Office: Import Target: 12:3; Export Target: 3:12. Branch 1: Import Target: 3:12; Export Target: 12:3. Branch 2: Import Target: 3:12; Export Target: 12:3.

Head Office: Import Target: 1:1; Export Target: 3:3. Branch 1: Import Target: 3:3; Export Target: 1:1. Branch 2: Import Target: 3:3; Export Target: 2:2.

Head Office: Import Target: 2:2; Export Target: 3:3. Branch 1: Import Target: 3:3; Export Target: 1:1. Branch 2: Import Target: 3:3; Export Target: 2:2.

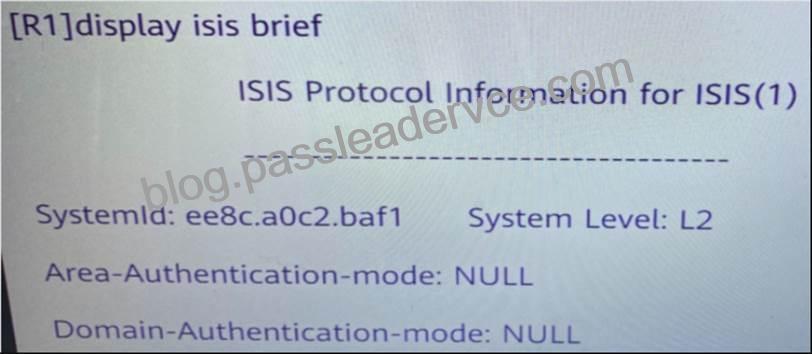

Q107. According to this figure, we can judge:

R1 is configured with zone authentication

The device type of R1 is Level-1

The device type of R1 is Leve-2

R1 sets routing domain authentication

Q108. To ensure security, authentication can be configured in the OSPFv3 process area view.

True

False

Q109. The default MPLS label publishing mode, label distribution control mode and label retention mode of Huawei routers are:

Label release method downstream independent method, the label distribution control method free method, the label retention method independent method.

Label release method free method, label distribution control method independent method, label retention method downstream independent method

Label release method downstream independent method, label distribution control method independent method, label retention methodm free method

Independent method of label release method, free method of label distribution control method, and downstream independent method of label retention method

Q110. What traffic can port mirroring mirror? (Multiple choice)

Packets accepted by the interface

The message sent by the end

Messages sent and received by the port

Packets discarded by the port

Q111. The packet filtering firewall provides support for detecting fragmented packets. What are the fragmented packets that the packet filtering firewall can filter? (Multiple choice)

Subsequent fragmented packets

Non-fragmented packets

Forged ICMP error message

The first fragmented packet

Q112. The LDP session is used to exchange messages such as label mapping and release between LSRs. Regarding the description of the LDP session establishment process, which of the following is correct? (Multiple choice)

Initialization Message is used to negotiate parameters during LDP Session establishment

When the ingress node LSR receives the label mapping message, it completes the establishment of the LDP session

KeepAlive Messagel is used to monitor the integrity of the TCP connection of the LDP Session

Two LSRs exchange Hello messages to trigger the establishment of an LDP session

Q113. Network administrator A wants to use the IP Prefix List to match a specific route entry. Which of the following routes will be matched by the IP Prefix List in the figure? (Multiple choice)

10.0.0.1/30

10.0.0.0/24

10.0.2.0/24

10.0.1.0/24

Q114. Configure ipv6 preference in IS-IS protocol view. The function of this command is to configure the priority of IPv6 routes generated by IS-IS protocol.

TRUE

FALSE

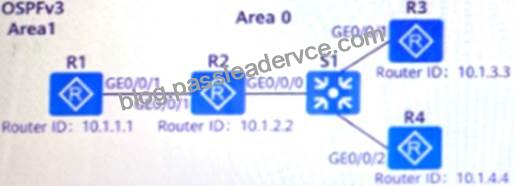

Q115. A campus has deployed IPv6 for service testing. There are 4 routers in the network, running OSPFV3 to realize the interconnection of IPv6 networks. As shown in the figure, an engineer checked the LSDB of R2 and intercepted one of the Link-LSAs.

Which of the following statements about the description of LSA is true? (Multiple choice)

The link-local address of R2 interface GE0/0/0 is: FE80

The router that generated this LSA is R2

The LSA shows that R2 does not support external routing, but participates in IPv6 routing calculation

The address prefix of the R2 interface GE0/0/0 IPv6 is 2001

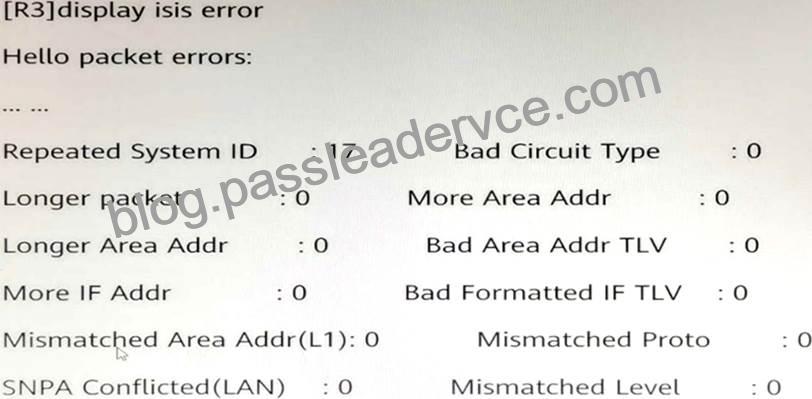

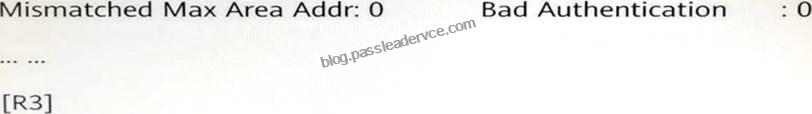

Q116. The IS-IS neighbor relationship between R3 and R1 is not established. According to the information in this figure, what is the possible reason?

The IS-Levels of R3 and R1 do not match

The area numbers of R3 and R1 are different

The IIH authentication of R3 and R1 failed

The System IDs of R3 and R1 are duplicated

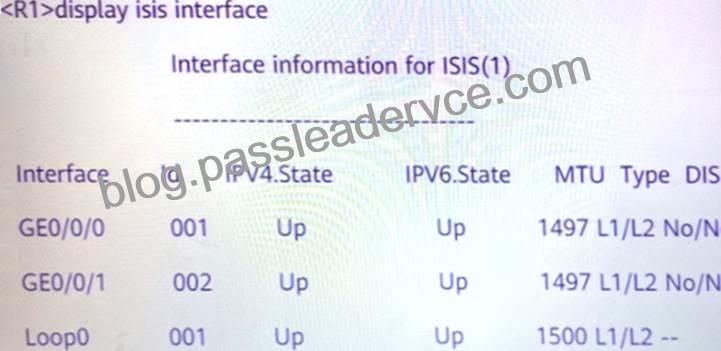

Q117. According to this figure, what can we judge? (Multiple choice)

IS-IS IPv6 is not enabled on the GE0/0/1 interface of R1

The IS-IS interface type of the GE0/0/1 interface of R1 is Leve-1

The IS-IS interface type of the GE0/0/0 interface of R1 is Leve-1-2

IS-IS IPv6 is enabled on the GE0/0/0 interface of R1

Q118. In BGP MPLS IP VPN, if OSPF protocol is used to exchange routing information between PE and CE, the domain identifier (Domain ID) is used to distinguish whether the routes imported in the VPI instance come from the same OSPF domain.

TRUE

FALSE
