* Overview of Automation Stitches: Automation stitches in Fortinet solutions enable automated responses to specific events detected within the network. This automation helps in swiftly mitigating threats without manual intervention.
* FortiGate Security Profiles:
* FortiGate uses security profiles to enforce policies on network traffic. These profiles can include antivirus, web filtering, intrusion prevention, and more.
* When a security profile detects a violation or a specific event, it can trigger predefined actions.
* Webhook Calls:
* FortiGate can be configured to send webhook calls upon detecting specific security events.
* A webhook is an HTTP callback triggered by an event, sending data to a specified URL. This allows FortiGate to communicate with other systems, such as FortiAnalyzer.
* FortiAnalyzer Integration:
* FortiAnalyzer collects logs and events from various Fortinet devices, providing centralized logging and analysis.
* Upon receiving a webhook call from FortiGate, FortiAnalyzer can further analyze the event, generate reports, and take automated actions if configured to do so.
* Detailed Process:
* Step 1: A security profile on FortiGate triggers a violation based on the defined security policies.
* Step 2: FortiGate sends a webhook call to FortiAnalyzer with details of the violation.
* Step 3: FortiAnalyzer receives the webhook call and logs the event.
* Step 4: Depending on the configuration, FortiAnalyzer can execute an automation stitch to respond to the event, such as sending alerts, generating reports, or triggering further actions.
* References:
* Fortinet Documentation: FortiOS Automation Stitches
* FortiAnalyzer Administration Guide: Details on configuring event handlers and integrating with FortiGate.
* FortiGate Administration Guide: Information on security profiles and webhook configurations.
By understanding the interaction between FortiGate and FortiAnalyzer through webhook calls and automation stitches, security operations can ensure a proactive and efficient response to security events.

* Understanding the FortiAnalyzer Fabric:
* The FortiAnalyzer Fabric provides centralized log collection, analysis, and reporting for connected FortiGate devices.
* Devices in a FortiAnalyzer Fabric can be organized into different Administrative Domains (ADOMs) to separate logs and management.

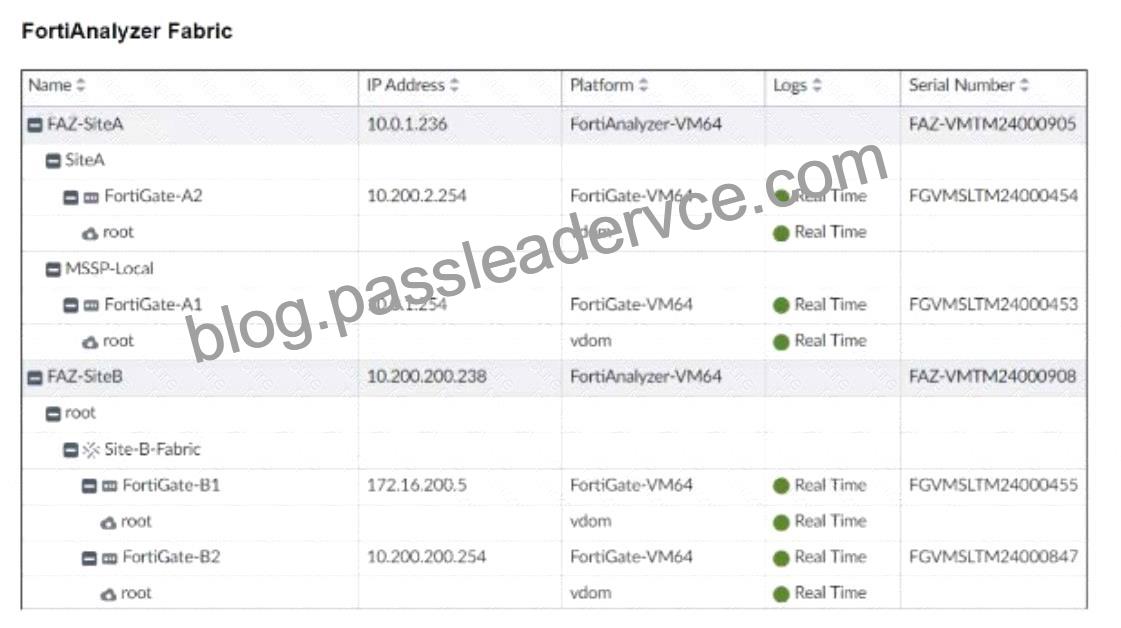

* Analyzing the Exhibit:
* FAZ-SiteAandFAZ-SiteBare FortiAnalyzer devices in the fabric.
* FortiGate-B1andFortiGate-B2are shown under theSite-B-Fabric, indicating they are part of the same Security Fabric.
* FAZ-SiteAhas multiple entries under it:SiteAandMSSP-Local, suggesting multiple ADOMs are enabled.
* Evaluating the Options:
* Option A:FortiGate-B1 and FortiGate-B2 are underSite-B-Fabric, indicating they are indeed part of the same Security Fabric.
* Option B:The presence of FAZ-SiteA and FAZ-SiteB as FortiAnalyzers does not preclude the existence of collectors. However, there is no explicit mention of a separate collector role in the exhibit.
* Option C:Not all FortiGate devices are directly registered to the supervisor. The exhibit shows hierarchical organization under different sites and ADOMs.
* Option D:The multiple entries underFAZ-SiteA(SiteA and MSSP-Local) indicate that FAZ-SiteA has two ADOMs enabled.
* Conclusion:
* FortiGate-B1 and FortiGate-B2 are in a Security Fabric.
* FAZ-SiteA has two ADOMs enabled.
References:
* Fortinet Documentation on FortiAnalyzer Fabric Topology and ADOM Configuration.
* Best Practices for Security Fabric Deployment with FortiAnalyzer.

* Understanding the Requirements:
* The objective is to create an incident and generate a report based on malicious attachment events detected by FortiAnalyzer from FortiSandbox analysis.
* The endpoint hosts are protected by FortiClient EMS, which is integrated with FortiSandbox. All logs are sent to FortiAnalyzer.
* Key Components:
* FortiAnalyzer: Centralized logging and analysis for Fortinet devices.
* FortiSandbox: Advanced threat protection system that analyzes suspicious files and URLs.
* FortiClient EMS: Endpoint management system that integrates with FortiSandbox for endpoint protection.

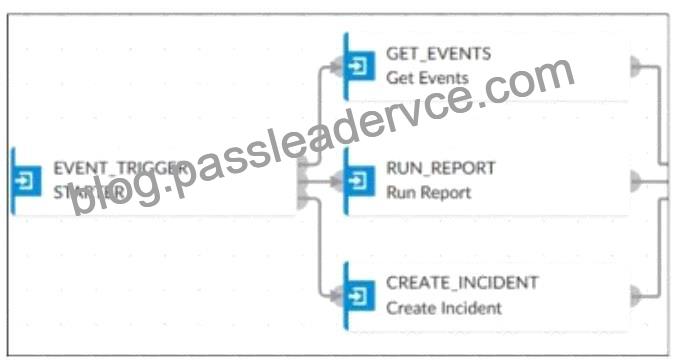

* Playbook Analysis:
* The playbook in the exhibit consists of three main actions:GET_EVENTS,RUN_REPORT, andCREATE_INCIDENT.
* EVENT_TRIGGER: Starts the playbook when an event occurs.
* GET_EVENTS: Fetches relevant events.
* RUN_REPORT: Generates a report based on the events.
* CREATE_INCIDENT: Creates an incident in the incident management system.
* Selecting the Correct Connector:
* The correct connector should allow fetching events related to malicious attachments analyzed by FortiSandbox and facilitate integration with FortiAnalyzer.
* Connector Options:
* FortiSandbox Connector:
* Directly integrates with FortiSandbox to fetch analysis results and events related to malicious attachments.
* Best suited for getting detailed sandbox analysis results.
* Selected as it is directly related to the requirement of handling FortiSandbox analysis events.
* FortiClient EMS Connector:
* Used for managing endpoint security and integrating with endpoint logs.
* Not directly related to fetching sandbox analysis events.
* Not selected as it is not directly related to the sandbox analysis events.
* FortiMail Connector:
* Used for email security and handling email-related logs and events.
* Not applicable for sandbox analysis events.
* Not selected as it does not relate to the sandbox analysis.
* Local Connector:
* Handles local events within FortiAnalyzer itself.
* Might not be specific enough for fetching detailed sandbox analysis results.
* Not selected as it may not provide the required integration with FortiSandbox.
* Implementation Steps:
* Step 1: Ensure FortiSandbox is configured to send analysis results to FortiAnalyzer.
* Step 2: Use the FortiSandbox connector in the playbook to fetch events related to malicious attachments.
* Step 3: Configure theGET_EVENTSaction to use the FortiSandbox connector.
* Step 4: Set up theRUN_REPORTandCREATE_INCIDENTactions based on the fetched events.
References:
* Fortinet Documentation on FortiSandbox Integration FortiSandbox Integration Guide
* Fortinet Documentation on FortiAnalyzer Event Handling FortiAnalyzer Administration Guide By using the FortiSandbox connector, the analyst can ensure that the playbook accurately fetches events based on FortiSandbox analysis and generates the required incident and report.

Understanding the MITRE ATT&CK Matrix:
The MITRE ATT&CK framework is a knowledge base of adversary tactics and techniques based on real-world observations.
Each tactic in the matrix represents the “why” of an attack technique, while each technique represents “how” an adversary achieves a tactic. Analyzing the Provided Exhibit:

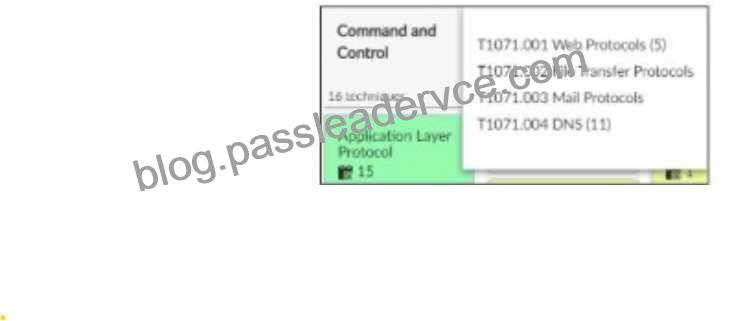

The exhibit shows part of the MITRE ATT&CK Enterprise matrix as displayed on FortiAnalyzer. The focus is on technique T1071 (Application Layer Protocol), which has subtechniques labeled T1071.001, T1071.002, T1071.003, and T1071.004.
Each subtechnique specifies a different type of application layer protocol used for Command and Control (C2):
T1071.001 Web Protocols
T1071.002 File Transfer Protocols
T1071.003 Mail Protocols
T1071.004 DNS
Identifying Key Points:
Subtechniques under T1071: There are four subtechniques listed under the primary technique T1071, confirming that statement B is true.
Event Handlers for T1071: FortiAnalyzer includes event handlers for monitoring various tactics and techniques. The presence of event handlers for tactic T1071 suggests active monitoring and alerting for these specific subtechniques, confirming that statement C is true. Misconceptions Clarified:
Statement A (four techniques under tactic T1071) is incorrect because T1071 is a single technique with four subtechniques.
Statement D (15 events associated with the tactic) is misleading. The number 15 refers to the techniques under the Application Layer Protocol, not directly related to the number of events. Conclusion:
The accurate interpretation of the exhibit confirms that there are four subtechniques under technique T1071 and that there are event handlers covering tactic T1071.
Reference: MITRE ATT&CK Framework documentation.
FortiAnalyzer Event Handling and MITRE ATT&CK Integration guides.

* Understanding the Issue:

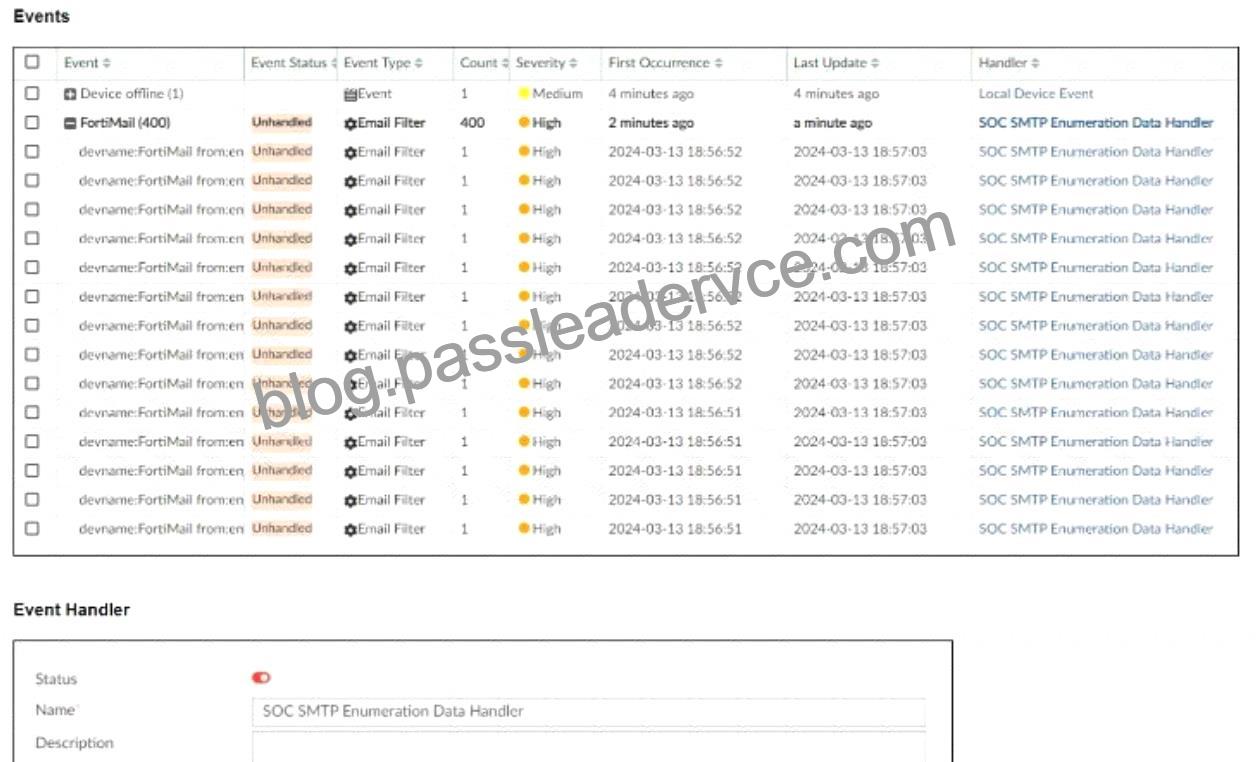

* The custom event handler for detecting SMTP reconnaissance activities is generating a large number of events.
* This high volume of events is overwhelming the notification system, leading to potential alert fatigue and inefficiency in incident response.
* Event Handler Configuration:
* Event handlers are configured to trigger alerts based on specific criteria.
* The frequency and volume of these alerts can be controlled by adjusting the trigger conditions.
* Possible Solutions:
* A. Increase the trigger count so that it identifies and reduces the count triggered by a particular group:
* By increasing the trigger count, you ensure that the event handler only generates alerts after a higher threshold of activity is detected.
* This reduces the number of events generated and helps prevent overwhelming the notification system.
* Selected as it effectively manages the volume of generated events.
* B. Disable the custom event handler because it is not working as expected:
* Disabling the event handler is not a practical solution as it would completely stop monitoring for SMTP reconnaissance activities.
* Not selected as it does not address the issue of fine-tuning the event generation.
* C. Decrease the time range that the custom event handler covers during the attack:
* Reducing the time range might help in some cases, but it could also lead to missing important activities if the attack spans a longer period.
* Not selected as it could lead to underreporting of significant events.
* D. Increase the log field value so that it looks for more unique field values when it creates the event:
* Adjusting the log field value might refine the event criteria, but it does not directly control the volume of alerts.
* Not selected as it is not the most effective way to manage event volume.
* Implementation Steps:
* Step 1: Access the event handler configuration in FortiAnalyzer.
* Step 2: Locate the trigger count setting within the custom event handler for SMTP reconnaissance.
* Step 3: Increase the trigger count to a higher value that balances alert sensitivity and volume.
* Step 4: Save the configuration and monitor the event generation to ensure it aligns with expected levels.
* Conclusion:
* By increasing the trigger count, you can effectively reduce the number of events generated by the custom event handler, preventing the notification system from being overwhelmed.
References:
* Fortinet Documentation on Event Handlers and Configuration FortiAnalyzer Administration Guide
* Best Practices for Event Management Fortinet Knowledge Base
By increasing the trigger count in the custom event handler, you can manage the volume of generated events and prevent the notification system from being overwhelmed.
