For a sink to be accessible in a corporate break room, it must comply with ADA standards, which include a maximum height of 34 inches (864 mm) above the finished floor, a clear floor space for approach, and knee space for wheelchair users. Additionally, exposed pipes must be insulated to prevent burns. Option A (integral solid surface sink at 34″ H with a 30″ x 48″ front approach and insulated piping) meets all requirements: the height is correct, the front approach space is adequate, and the piping is insulated. Option B (undermount stainless steel sink with a side approach) has a 30″ x 42″ approach, which is too narrow for a side approach (ADA requires 30″ x 48″), and a grab bar is not required for a sink. Option C (porcelain drop-in sink with exposed rim) may pose a barrier due to the rim, which can obstruct access for wheelchair users, despite meeting other criteria.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on accessibility standards.
Exact Extract:TheNCIDQ IDFX Reference Manualreferences ADA standards, stating, “An accessible sink must be no higher than 34 inches (864 mm), provide a 30″ x 48″ front approach, and have insulated piping to protect wheelchair users.” The NCIDQ IDFX curriculum requires designers to apply ADA standards for accessible fixtures, with Option A fully meeting the criteria for height, approach, and safety.
Objectives:
* Apply accessibility standards to break room design (IDFX Objective: Codes and Standards).

A smoke barrier partition is a wall or partition designed to limit the spread of smoke during a fire, as defined by the International Building Code (IBC). The NCIDQ IDFX Reference Manual and IBC Section 709 (Smoke Barriers) specify requirements for smoke barriers and their openings, including doors, to ensure they maintain their smoke-resistant function.
* A. Panic door hardware: Panic hardware (e.g., push bars) is required on doors in certain egress paths, such as in assembly occupancies (Group A) or where the occupant load exceeds a threshold (e.g., 50 people in Group A, per IBC Section 1010.1.10). However, panic hardware is not specifically required for doors in smoke barriers unless the door serves a high-occupancy egress path, which is not indicated in the question.
* B. Self or automatic closers: IBC Section 709.5 (Openings in Smoke Barriers) requires that doors in smoke barriers be self-closing or automatic-closing to ensure the barrier remains effective in preventing smoke spread. Self-closing doors use a closer mechanism (e.g., a spring hinge) to close automatically after being opened, while automatic-closing doors close via a fire alarm or smoke detector activation.
This requirement ensures the door remains closed during a fire, maintaining the integrity of the smoke barrier, making this the correct answer.
* C. Class C fire protection rating: The term “Class C fire protection rating” is not a standard classification in the IBC for doors. Doors are rated by their fire protection rating in hours (e.g., 20 minutes, 3/4 hour, per IBC Table 716.1(2)). Smoke barrier doors typically require a 20-minute fire protection rating (per IBC Section 709.5), but this is not referred to as “Class C,” and the question focuses on smoke barrier requirements, not fire ratings.
The NCIDQ IDFX Reference Manual confirms that doors in smoke barriers must have self or automatic closers to ensure they close during a fire, maintaining the barrier’s smoke-resistant function, as required by the IBC.
Verified Answer from Official Source:The correct answer is B, as verified by the NCIDQ IDFX Reference Manual and IBC Section 709.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 2: Building Codes and Standards): “Doors in a smoke barrier partition must have self or automatic closers to ensure they remain closed during a fire, maintaining the barrier’s ability to limit smoke spread.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that self or automatic closers are required for doors in smoke barriers to ensure they close automatically, preventing smoke from passing through the opening during a fire.
This requirement, outlined in IBC Section 709.5, is critical for maintaining the smoke barrier’s function, making it the primary requirement for such doors.
Objectives:
* Understand the requirements for doors in smoke barriers.
* Apply building code standards to ensure smoke safety in design.

A bubble diagram is a conceptual tool used in the early stages of the design process to explore spatial relationships and adjacencies between different areas of a project. It is typically created during the programming or schematic design phase to help designers understand how spaces should be organized based on functional needs and constraints. According to NCIDQ Interior Design Fundamentals, the primary focus of a bubble diagram is to establish relationships between spaces, considering factors that influence the overall layout at a high level.
* A. Zoning constraints: Zoning constraints are critical during the early stages of design because they dictate how spaces can be used based on local regulations, building codes, and zoning laws. For example, zoning may restrict certain areas to residential, commercial, or mixed-use, which directly impacts the arrangement of spaces in a bubble diagram. This makes zoning constraints a key consideration when developing a bubble diagram, as they set the foundational parameters for spatial organization.
* B. Occupancy use group: While occupancy use group (e.g., as defined by the IBC) is important for determining code requirements like egress and fire safety, it is more relevant during later stages of design, such as space planning or code compliance, rather than the conceptual stage of a bubble diagram.
* C. Corridor minimum width: Corridor widths are a detailed design consideration that comes into play during space planning or construction documentation, not during the high-level conceptual phase of a bubble diagram.
* D. Solar orientation of the building: Solar orientation can influence design decisions, such as the placement of windows or energy efficiency, but it is not a primary consideration during the bubble diagram phase, which focuses on functional relationships rather than environmental factors.
The NCIDQ IDFX Reference Manual emphasizes that bubble diagrams are used to explore “functional relationships and adjacencies,” and external constraints like zoning must be considered to ensure the diagram aligns with legal and regulatory requirements.
Verified Answer from Official Source:The correct answer is A, as verified by the NCIDQ IDFX Reference Manual, which highlights the importance of zoning constraints in early design phases.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 3: Programming and Space Planning): “During the programming phase, designers must consider external constraints such as zoning regulations, which impact the feasibility of spatial arrangements in conceptual diagrams like bubble diagrams.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that bubble diagrams are part of the programming and schematic design process, where the designer identifies key constraints that affect the project. Zoning constraints are explicitly mentioned as a factor that must be considered to ensure the design aligns with local regulations, making this the most relevant choice for developing a bubble diagram.
Objectives:
* Understand the purpose and application of bubble diagrams in the design process.
* Identify external factors, such as zoning constraints, that influence early-stage design decisions.

A full-scale representation of a proposed workstation allows the client to experience the design in real life, including its size, functionality, and appearance. A mock-up is a full-scale, physical model of the workstation, often built to test the design before final production. This is the best option for a client to evaluate the workstation in a tangible way. Option B (shop drawing) is a detailed technical drawing for fabrication, not a physical model. Option C (finish sample) is a small material sample, not a full-scale representation. Option D (specifications) is a written document, not a physical model.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on design communication and prototyping.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “A mock-up is a full-scale physical model requested when a client needs to evaluate a proposed design, such as a workstation, in real space.” The NCIDQ IDFX curriculum highlights mock-ups as a tool for client review and design validation, especially for custom or complex elements like workstations.
Objectives:
* Use mock-ups to communicate and validate design solutions (IDFX Objective: Design Communication).

During the programming phase, the designer must ensure that the available space meets the client’s needs as outlined in the program. The program area represents the total space required for all functions (e.g., workstations, circulation, support spaces). The usable area is the actual space available for occupancy, excluding structural elements and common areas. Equating the program area to the usable area ensures that the space can accommodate all required functions without over- or underestimating the space. Option B (rentable area) includes common areas like hallways, which inflates the space and is not accurate for functional needs. Option C (building utilization rate) is a broader metric for overall building efficiency, not specific to the tenant space. Option D (industry standards) is useful for benchmarking but not for confirming specific space adequacy.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on programming and space planning.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “To confirm space adequacy, the program area should be equated to the usable area of the tenant space to ensure all functional needs are met.” The NCIDQ IDFX curriculum emphasizes accurate space analysis during programming, using usable area as the key metric for tenant spaces to ensure functionality.
Objectives:
* Analyze space requirements during programming (IDFX Objective: Programming and Site Analysis).

A busy waiting room requires durable upholstery fabric due to high traffic and frequent use. The Wyzenbeek test measures abrasion resistance in double rubs, while the Martindale test uses cycles. For commercial spaces like waiting rooms, industry standards recommend a minimum of 30,000 Wyzenbeek double rubs for heavy- duty use. Option D (Wyzenbeek 30,000) meets this requirement. Option C (Wyzenbeek 10,000) is too low, suitable for light residential use. Options A and B use the Martindale test, but even 25,000 Martindale cycles (equivalent to about 18,000 Wyzenbeek double rubs) is insufficient for a busy waiting room, where higher durability is needed.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on material specifications and durability.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “For high-traffic commercial spaces like waiting rooms, upholstery fabric should have a minimum of 30,000 Wyzenbeek double rubs to ensure durability.” The NCIDQ IDFX curriculum requires designers to specify materials based on performance criteria, with Wyzenbeek double rubs being a standard measure for upholstery durability in commercial settings.
Objectives:
* Specify durable materials for commercial interiors (IDFX Objective: Material Selection and Specification).

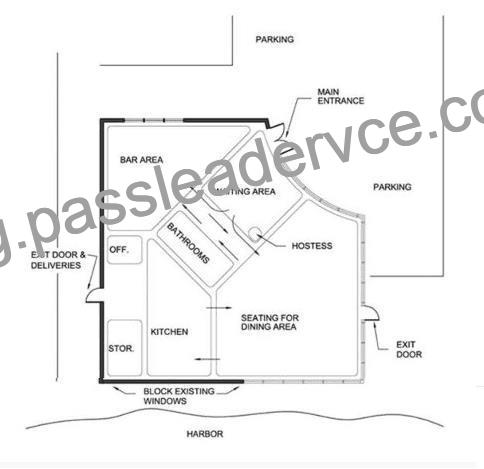

The blocking diagram provided shows the layout of a restaurant with key areas labeled, including the bar area, waiting area, hostess station, seating for the dining area, kitchen, storage, bathrooms, and exits. The restaurant is situated along a harbor, with windows facing the harbor on one side. The question asks for a major factor in the design analysis that the designer has overlooked, which requires evaluating the layout against standard interior design principles, particularly those relevantto restaurant design as outlined in the NCIDQ Interior Design Fundamentals.
* Option A: Building orientation: view to the harbor from the bar areaThe bar area is positioned near the windows facing the harbor, which suggests that the designer has considered the view as a priority for this space. In restaurant design, orienting key areas like the bar or dining spaces to take advantage of scenic views (such as a harbor) is a common practice to enhance the customer experience.
Since the bar area is already adjacent to the harbor-facing windows, this factor does not appear to be overlooked. Therefore, Option A is not the correct answer.
* Option B: Adjacency needs: adjacency between storage and the bar areaAdjacency needs refer to the functional relationships between spaces. In a restaurant, the bar area often requires frequent access to storage for items like beverages, glassware, and other supplies. In the diagram, the storage area is located near the kitchen, which is on the opposite side of the bathrooms from the bar area. While it might be more efficient to have the storage closer to the bar, the kitchen’s proximity to the storage is also logical, as the kitchen will need access to supplies. Additionally, the bar can be restocked during off-peak hours, reducing the urgency of this adjacency. This is a minor concern compared to other factors, so Option B is not the most critical issue.
* Option C: Sanitation and health issues: location of the kitchen and bathroomsSanitation and health regulations are critical in restaurant design, especially concerning the placement of kitchens and bathrooms. In the diagram, the bathrooms are positioned directly between the kitchen and the dining area, with a pathway that appears to connect the kitchen to the dining area running through or adjacent to the bathroom area. This layout raises significant concerns. According to health and sanitation codes (which are often referenced in NCIDQ materials), kitchens should be separated from bathrooms to prevent contamination risks. The potential for odors, noise, or cross-contamination (e.g., from bathroom traffic near food preparation areas) is a major health issue. Additionally, staff moving between the kitchen and dining area may need to pass through or near the bathroom area, which could compromise hygiene. This is a major oversight in the design, making Option C a strong candidate for the correct answer.
* Option D: Safety concerns: traffic controls between the bar and the dining areaTraffic flow and safety are important in restaurant design to prevent collisions between staff and patrons, especially in high-traffic areas like between the bar and dining area. In the diagram, the bar area and dining area are adjacent, with the waiting area and hostess station providing some separation. While traffic control is a valid concern, the layout does not show an immediate safety hazard, as there is no direct overlap of high-traffic paths (e.g., staff carrying trays) between the bar and dining area. The hostess station can help manage customer flow, and the bar area’s proximity to the dining area is typical in restaurant layouts. This issue is less critical than sanitation concerns, so Option D is not the most significant oversight.
Based on this analysis, the most critical factor overlooked issanitation and health issues due to the location of the kitchen and bathrooms, making Option C the correct answer. The placement of the bathrooms between the kitchen and dining area violates basic health and safety principles in restaurant design, which are heavily emphasized in NCIDQ guidelines.
Verified Answer from Official Source:
The correct answer is verified using principles from the NCIDQ Interior Design Fundamentals and related study materials, which emphasize health, safety, and welfare (HSW) in design, particularly in commercial spaces like restaurants.
Exact Extract:
From the NCIDQ IDFX Reference Manual (a common resource for NCIDQ candidates):
“Health and sanitation requirements must be carefully considered in food service facilities. Kitchens should be located to minimize the risk of contamination, with clear separation from restrooms to prevent cross- contamination and ensure compliance with local health codes.” The NCIDQ guidelines stress that in food service environments, the kitchen must be isolated from areas that could pose sanitation risks, such as bathrooms. The diagram shows the bathrooms positioned directly between the kitchen and dining area, which creates a risk of contamination. Staff moving food from the kitchen to the dining area may pass near the bathrooms, potentially exposing food to odors, germs, or other contaminants.
This layout violates health codes and NCIDQ principles, making it a major oversight in the design analysis.
Objectives:
* Understand the importance of health, safety, and welfare (HSW) in interior design.
* Apply adjacency and zoning principles to ensure functional and safe layouts in commercial spaces.
* Identify potential violations of health and sanitation codes in food service environments.

Sustainability in interior design involves specifying products that minimize negative impacts on human health and the environment. The NCIDQ IDFX Reference Manual and sustainability standards (e.g., from the U.S.
Green Building Council [USGBC] and LEED) define key terms related to environmentally responsible products.
* A. Carbon neutral products: Carbon neutral products are produced with no net increase in greenhouse gas emissions, either through emission-free production or offsets. While this reduces environmental impact in terms of climate change, it does not necessarily address broader impacts on human health (e.
g., indoor air quality) or other environmental factors (e.g., resource depletion).
* B. Rapidly renewable products: Rapidly renewable products are made from materials that regenerate quickly (e.g., bamboo, cork, with a growth cycle of 10 years or less). While they reduce environmental impact by minimizing resource depletion, they do not necessarily address human health impacts, such as emissions or toxicity.
* C. Environmentally preferable products: Environmentally preferable products (EPPs) aredefined as products that have a reduced effect on human health and the environment compared to competing products serving the same purpose. This includes factors like low emissions (e.g., low VOCs for better indoor air quality), reduced toxicity, energy efficiency, and sustainable sourcing. EPPs encompass a broad range of criteria, making them the most comprehensive match for the question’s description.
The NCIDQ IDFX Reference Manual uses the term “environmentally preferable products” to describe products that are better for both human health and the environment, aligning with LEED credits (e.g., MR Credit: Environmentally Preferable Products) that prioritize holistic sustainability.
Verified Answer from Official Source:The correct answer is C, as verified by the NCIDQ IDFX Reference Manual.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 9: Sustainable Design): “Environmentally preferable products are those that have a reduced effect on human health and the environment compared to competing products, considering factors like emissions, toxicity, and resource use.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that environmentally preferable products are defined by their reduced impact on both human health (e.g., through low emissions and non-toxic materials) and the environment (e.g., through sustainable sourcing and energy efficiency). This broad definition encompasses more specific terms like carbon neutral or rapidly renewable, making it the best fit for the question.
Objectives:
* Understand key sustainability terms in interior design.
* Identify products that minimize impacts on human health and the environment.

Ethical behavior in interior design is governed by professional codes of conduct, such as the NCIDQ Code of Ethics and codes from organizations like the American Society of Interior Designers (ASID) and the International Interior Design Association (IIDA). These codes emphasize honesty, integrity, and transparency in professional practice.
* A. Code of ethics: The NCIDQ Code of Ethics requires designers to be truthful in their professional representations. Claiming to specialize in healthcare design when the firm hasonly completed education projects with minimal healthcare components (e.g., a small nurse room) is a misrepresentation of their expertise. This violates the code of ethics, specifically the principle of honesty, as it could mislead the client about the firm’s qualifications and experience, potentially compromising the project’s outcome.
* B. RFP guidelines: A Request for Proposal (RFP) outlines the requirements for submitting a bid, such as project scope and submission format. While misrepresenting expertise might not align with the spirit of an RFP, it is not a direct violation of RFP guidelines unless the RFP explicitly requires proof of healthcare experience, which is not indicated in the question.
* C. Permitting requirements: Permitting requirements involve complying with local building codes and regulations to obtain permits for construction. Misrepresenting expertise does not directly violate permitting requirements, as this issue pertains to professional conduct, not regulatory compliance.
* D. Health and safety guidelines: Health and safety guidelines relate to designing spaces that protect occupants (e.g., following codes for egress, fire safety). While a lack of healthcare expertise could potentially impact health and safety in a project, the act of misrepresenting expertise is not a direct violation of these guidelines.
The NCIDQ Code of Ethics explicitly prohibits misrepresentation of qualifications, making this a clear violation of ethical standards.
Verified Answer from Official Source:The correct answer is A, as verified by the NCIDQ Code of Ethics.
Exact Extract:
From the NCIDQ Code of Ethics (Section 1: Responsibility to the Profession): “Interior designers shall not misrepresent their qualifications, experience, or expertise, ensuring honesty in all professional representations to clients and stakeholders.” Explanation from Official Source:
The NCIDQ Code of Ethics states that designers must be truthful about their qualifications and experience.
Claiming to specialize in healthcare design without substantial experience in that area is a misrepresentation, violating the ethical principle of honesty. This could mislead the client and affect the project’s success, making it a clear ethical violation.
Objectives:
* Understand ethical standards in interior design practice.
* Identify behaviors that violate the NCIDQ Code of Ethics.

Travel distance is a key component of the means of egress, defined by the International Building Code (IBC) as the distance an occupant must travel from the most remote point in a space to reach an exit. The NCIDQ IDFX Reference Manual and IBC Chapter 10 (Means of Egress) specify maximum allowable travel distances based on occupancy type and whether the building is sprinklered. For a fitness center (likely classified as an Assembly occupancy, Group A-3), the maximum travel distance is typically 200 feet (61 meters) in a non- sprinklered building or 250 feet (76 meters) in a sprinklered building, per IBC Table 1017.2. The question asks which intervening spaces can be used to reduce travel distance, meaning the space must be part of the egress path and not pose additional hazards or restrictions.
* A. Office: An office is a private space typically used by staff, not part of the public egress path. IBC Section 1006.2.1 states that egress paths must be through spaces that are accessible to all occupants, and private offices do not meet this requirement. Traveling through an office would not be a permissible part of the egress path.
* B. Lockers: Locker rooms may be part of a fitness center, but they often contain obstacles like benches and lockers that can impede egress. Additionally, locker rooms may have dead-end corridors or limited exits, which could increase risk during an emergency. IBC Section 1018.4 limits dead-end corridors in egress paths, making locker rooms a less suitable option.
* C. Storage: Storage rooms are not part of the egress path, as they are typically not accessible to the public and may contain hazards (e.g., clutter, locked doors). IBC Section 1006.2.2.3 prohibits egress through storage rooms due to the potential for obstruction and safety risks.
* D. Reception: A reception area is a public, open space that is typically part of the main circulation path in a fitness center. It is designed to be accessible to all occupants and is often located near the main entrance/exit, making it a permissible and practical space to include in the egress path. Traveling through a reception area can reduce the overall travel distance by providing a direct route to an exit, as long as the path remains unobstructed and meets width requirements (per IBC Section 1005).
The NCIDQ IDFX Reference Manual and IBC confirm that egress paths must be throughaccessible, public spaces like reception areas, which can help reduce travel distance while maintaining safety.
Verified Answer from Official Source:The correct answer is D, as verified by the NCIDQ IDFX Reference Manual and IBC Chapter 10.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 2: Building Codes and Standards): “Egress paths must be through accessible, public spaces such as reception areas, which can be used to reduce travel distance while ensuring a safe and unobstructed route to an exit.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that travel distance can be reduced by routing the egress path through public, accessible spaces like reception areas, which are designed for circulation and typically lead to exits. This aligns with IBC requirements that prohibit egress through private or hazardous spaces like offices, locker rooms, or storage areas.
Objectives:
* Understand the components of the means of egress, including travel distance.
* Identify permissible spaces for egress paths to ensure code compliance.

The issue of insufficient tiling and storage in a completed space points to a failure in understanding the client’ s needs and requirements during the design process. The NCIDQ IDFX Reference Manual outlines the steps of the design process, emphasizing the importance of each phase in ensuring a successful project outcome.
* A. Researched precedents: Researching precedents involves studying similar projects to inform design decisions. While this can provide inspiration, it does not directly address the client’s specific needs for tiling and storage, which are unique to their project.
* B. Conducted programming: Programming is the phase of the design process where the designer gathers and analyzes the client’s needs, goals, and requirements. This includes determining the amount of storage needed, the types of spaces required, and specific material needs like tiling. If the designer had conducted thorough programming, they would have identified the client’s need for sufficient tiling (e.g., in wet areas) and storage (e.g., cabinets, shelving) early in the process, ensuring these elements were incorporated into the design. This makes programming the most relevant step to avoid the issue.
* C. Completed code research: Code research ensures compliance with building codes, such as egress, accessibility, and fire safety. While important, it is not directly related to the quantity of tiling or storage, which are functional and client-specific requirements rather than code-driven.
* D. Developed a punch [deficiency] list: A punch list is created at the end of a project to identify deficiencies or incomplete work (e.g., missing tiles, unfinished storage installation). While a punch list might catch installation errors, it does not address the root cause of insufficient tiling and storage, which is a failure to plan for these elements during the design phase.
The NCIDQ IDFX Reference Manual emphasizes that programming is the foundation of a successful design, as it ensures that the client’s needs are fully understood and addressed in the design solution. Insufficient tiling and storage indicate a lack of proper programming.
Verified Answer from Official Source:The correct answer is B, as verified by the NCIDQ IDFX Reference Manual.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 3: Programming and Space Planning):”Programming involves gathering and analyzing the client’s needs and requirements, such as storage and material specifications, to ensure the design meets their functional and aesthetic goals.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that programming is the process of identifying the client’s specific needs, such as the amount of storage or the extent of tiling required for a space. By conducting thorough programming, the designer can incorporate these requirements into the design, preventing issues like insufficient tiling or storage in the completed project.
Objectives:
* Understand the role of programming in the interior design process.
* Identify how programming prevents design deficiencies related to client needs.

Benchmarking research outcomes in interior design often involve comparing performance metrics, such as space utilization or user satisfaction, against industry standards or similar projects. The best method to communicate these outcomes to a client is a visual display of statistics and data (e.g., charts, graphs, or infographics), as it makes complex data easy to understand, highlights key findings, and facilitates decision- making. Option A (written summary document) is useful but less engaging and harder to digest for non- technical clients. Option B (table of code considerations) is unrelated to benchmarking research. Option D (complete study with parti diagrams) is too detailed and includes conceptual diagrams irrelevant to benchmarking outcomes.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on design communication.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “The best method to communicate benchmarking research outcomes to a client is through a visual display of statistics and data, such as charts or graphs, to clearly convey key findings.” The NCIDQ IDFX curriculum emphasizes effective communication with clients, with visual displays being the preferred method for presenting data-driven research like benchmarking.
Objectives:
* Communicate research outcomes effectively to clients (IDFX Objective: Design Communication).

Colorfastness (resistance to fading) and stain resistance are critical for textiles in high-traffic environments.
Solution-dyeing is the best method because the color is added to the polymer solution before the fiber is extruded, locking the color into the fiber’s core. This makes the fiber highly resistant to fading from UV light, cleaning, or wear, and it also enhances stain resistance because the color is integral, not surface-applied.
Option A (yarn-dyeing) dyes the yarn before weaving, offering good colorfastness but less stain resistance.
Option B (piece-dyeing) dyes the fabric after weaving, making it more prone to fading and staining. Option D (stock- or fiber-dyeing) dyes loose fibers before spinning, which is less consistent and less resistant to fading than solution-dyeing.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on textile manufacturing and performance.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “Solution-dyeing is the best method for colorfastness and stain resistance, as the color is integrated into the fiber during manufacturing, making it highly durable.” The NCIDQ IDFX curriculum covers textile production methods, with solution-dyeing being the preferred choice for durability and performance in commercial applications.
Objectives:
* Understand textile manufacturing methods and their impact on performance (IDFX Objective: Material Selection and Specification).

Licensing and title registration for interior designers are critical for legal practice in many jurisdictions, particularly for projects involving public safety, such as those requiring code compliance for egress, fire safety, and accessibility. The NCIDQ certification, which is often a prerequisite for licensing, ensures that designers meet professional standards and can legally practice in regulated areas.
* A. Improve insurability: While licensing may make it easier to obtain professional liability insurance, this is a secondary benefit rather than the primary reason for pursuing licensing.
* B. Justify fee increases: Licensing might allow a designer to charge higher fees due to their credentials, but this is a business decision, not the most important reason for licensing.
* C. Expand job opportunities: Licensing can open doors to more projects, especially in regulated jurisdictions, but this is a byproduct of meeting legal requirements, not the primary reason.
* D. Meet jurisdiction requirements: Many states and provinces require interior designers to be licensed or registered to practice legally, especially for projects that involve public spaces where health, safety, and welfare (HSW) are concerns. For example, in the U.S., states like Florida and Louisiana have strict licensing laws for interior designers, and failing to meet these requirements can result in legal penalties or the inability to practice. The NCIDQ certification is often required to obtain this licensure, making this the most important reason.
The NCIDQ IDFX Reference Manual and CIDQ guidelines emphasize that licensing ensures compliance with jurisdictional laws, protecting both the public and the designer by ensuring a minimum standard of competency.
Verified Answer from Official Source:The correct answer is D, as verified by the NCIDQ IDFX Reference Manual and CIDQ professional practice guidelines.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 1: Professional Practice): “Licensing and title registration are primarily pursued to meet jurisdictional requirements, ensuring that interior designers can legally practice in regulated areas while protecting public health, safety, and welfare.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that the primary purpose of licensing is to comply with legal requirements set by jurisdictions. This is especially critical in states or provinces where interior design is a regulated profession, and designers must be licensed to submit drawings for permitting or to work on projects involving public safety.
Objectives:
* Understand the role of licensing in interior design practice.
* Identify the legal and professional reasons for pursuing NCIDQ certification and licensure.

The design process involves several stages, including research, analysis, synthesis, and implementation.
Synthesis is the stage where the designer combines different parts or elements-such as programming data, user needs, and design concepts-to form a coherent whole, resulting in a unified design solution. This involves integrating findings from earlier stages into a cohesive plan. Option A (analysis) involves breaking down information to understand it, not combining elements. Option B (research) is about gathering data, not synthesizing it. Option D (hypothesis) is apreliminary idea or assumption, not a stage of combining elements.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on the design process.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “Synthesis in the design process involves combining different parts or elements, such as user needs and design concepts, to form a coherent whole.” The NCIDQ IDFX curriculum outlines the design process, with synthesis being the stage where disparate elements are integrated into a unified design solution.
Objectives:
* Understand the stages of the design process (IDFX Objective: Design Process).

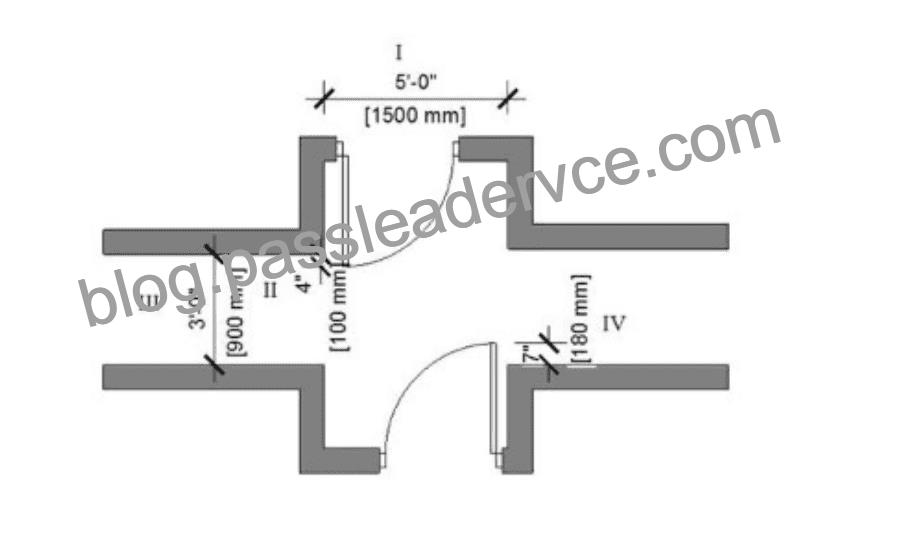

The means of egress is a continuous and unobstructed path of travel from any point in a building to a public way, as defined by the IBC. The NCIDQ IDFX Reference Manual and IBC Chapter 10 (Means of Egress) specify minimum clear widths for corridors to ensure safe evacuation. For most occupancies, such as business (Group B) or residential (Group R), the minimum clear width for a corridor is 44 inches (1118 mm) in a non- sprinklered building, though it can be reduced to 36 inches (914 mm) in certain cases, such as for smaller occupancies or residential corridors serving fewer than 50 occupants (per IBC Section 1020.2).
Let’s evaluate the dimensions in the image:
* Dimension I: 5′-0″ [1500 mm]: This is well above the minimum required width of 44 inches (1118 mm) or 36 inches (914 mm), so it meets egress requirements.
* Dimension II: 4′-0″ [1200 mm]: This is also above the minimum required width, as 4 feet (1200 mm) exceeds both 44 inches and 36 inches.
* Dimension III: 3′-0″ [900 mm]: This is below the minimum required width. At 3 feet (900 mm), it does not meet the 44-inch (1118 mm) requirement for most corridors, nor the 36-inch (914 mm) minimum for smaller residential corridors. This dimension must be increased to at least 36 inches, and likely 44 inches, depending on the occupancy and number of occupants served.
* Dimension IV: 4′-0″ [1200 mm]: Like Dimension II, this meets the minimum requirements.
Since Dimension III (3′-0″ or 900 mm) does not meet the minimum clear width for a means of egress, it must be changed to comply with building code requirements. The NCIDQ IDFX Reference Manual confirms that corridors must meet these minimum widths to ensure safe evacuation.
Verified Answer from Official Source:The correct answer is C, as verified by the NCIDQ IDFX Reference Manual and IBC Section 1020.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 2: Building Codes and Standards): “Corridors must have a minimum clear width of 44 inches (1118 mm) in most occupancies, or 36 inches (914 mm) in certain residential settings, to meet means of egress requirements.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that the minimum clear width for corridors in the means of egress is typically 44 inches, though it can be 36 inches in specific cases. Dimension III (3′-0″ or 900 mm) falls below this threshold, making it non-compliant with egress requirements. Increasing this dimension to at least 36 inches, and likely 44 inches depending on the occupancy, ensures safe evacuation.
Objectives:
* Understand the minimum clear width requirements for corridors in the means of egress.
* Apply building code standards to ensure safe evacuation paths.

In senior living facilities, floor coverings must be selected to minimize the risk of falls, which is a significant concern for older adults due to potential mobility and balance issues. The NCIDQ IDFX Reference Manual and accessibility standards, such as the ADA and the Uniform Federal Accessibility Standards (UFAS), provide guidelines for safe flooring in such environments. Key factors to consider include surface texture, pile height, density, and installation method, as these affect traction, stability, and ease of movement, especially for those using assistive devices like walkers or wheelchairs.
* A. Multi-level, cut and loop carpet, direct glue installation: Multi-level carpets have varying pile heights, which can create uneven surfaces and increase the risk of tripping. While the direct glue installation provides stability, the multi-level texture makes this option less safe for seniors.
* B. Low pile, plush carpet, installed over pad: Plush carpet, even with a low pile, is soft and cushioned, which can cause instability for seniors, especially those with mobility issues. The padding underneath adds to the softness, making it harder to walk on and increasing the risk of falls.
Additionally, padded carpets can create resistance for wheelchairs, making mobility more difficult.
* C. Low pile, high density carpet, direct glue installation: Low pile (short fibers) reduces the risk of tripping, and high density (tightly packed fibers) provides a firm, stable surfacethat supports walking and wheelchair movement. Direct glue installation ensures the carpet is securely adhered to the floor, preventing shifts or wrinkles that could cause tripping. This option offers the best combination of safety and stability for a senior living facility.
* D. Cut pile, low density carpet, direct glue installation: While the low pile and direct glue installation are positive, low density means the carpet fibers are less tightly packed, resulting in a softer, less stable surface. This can increase the risk of falls compared to a high-density carpet.
The NCIDQ IDFX Reference Manual emphasizes that flooring in senior living facilities should prioritize safety by providing a firm, even surface with good traction. Low pile, high-density carpet with a direct glue installation meets these criteria, aligning with accessibility standards like the ADA, which requires flooring to be “stable, firm, and slip-resistant.” Verified Answer from Official Source:The correct answer is C, as verified by the NCIDQ IDFX Reference Manual and ADA Standards for Accessible Design.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 6: Human Factors and Ergonomics): “In senior living facilities, flooring should be selected to minimize fall risks, with low pile, high-density carpet installed using direct glue methods providing a stable, firm surface that supports safe mobility.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that low pile, high-density carpet with direct glue installation is ideal for senior living facilities because it provides a firm, even surface that reduces tripping hazards and supports mobility for residents, including those using assistive devices. The manual also references accessibility standards, such as the ADA, which require flooring to be stable and slip-resistant to ensure safety.
Objectives:
* Understand the safety considerations for flooring in senior living facilities.
* Apply accessibility standards to select appropriate floor coverings for vulnerable populations.

Curved windows, such as those in arched or bay window configurations, present unique challenges for window treatments because standard treatments may not conform to the window’s shape. The NCIDQ IDFX Reference Manual and interior design standards provide guidance on selecting window treatments based on window shape, functionality, and aesthetics.
* A. Roller shade: Roller shades are flat and typically designed for straight, rectangular windows. They cannot easily conform to the curve of a window, making them difficult to install and operate on a curved window. While custom solutions exist, they are not the best fit for this scenario.
* B. Vertical blind: Vertical blinds are designed for tall, straight windows or sliding doors, with slats that hang vertically. They are not flexible enough to follow the curve of a window and would leave gaps, making them unsuitable for curved windows.
* C. Pleated shade: Pleated shades are made of fabric that is folded into accordion-like pleats, allowing them to be custom-cut and shaped to fit curved or arched windows. They can be installed in a fan-like configuration for arched windows or adjusted to follow the curve of a bay window, making them the most suitable option for curved windows. Pleatedshades also provide light control and privacy while maintaining an aesthetic fit with the window’s shape.
* D. Horizontal blind: Horizontal blinds have rigid slats that are designed for straight windows. They cannot bend or conform to a curved window, making them impractical for this application.
The NCIDQ IDFX Reference Manual highlights that pleated shades are often used for specialty windows, such as curved or arched windows, due to their flexibility and ability to be custom-fitted to non-standard shapes.
Verified Answer from Official Source:The correct answer is C, as verified by the NCIDQ IDFX Reference Manual.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 8: Environmental Control Systems): “Pleated shades are best suited for curved or arched windows, as their flexible, accordion-like structure can be custom-cut to fit the window’s shape while providing light control and privacy.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that pleated shades are ideal for curved windows because their design allows them to be shaped to fit the window’s contour, ensuring both functionality and aesthetics. This makes them a better choice than roller shades, vertical blinds, or horizontal blinds, which are designed for straight windows.
Objectives:
* Understand the application of window treatments for specialty window shapes.
* Select appropriate window treatments based on window configuration and design needs.

During the programming phase for a new office occupying an entire floor, the designer focuses on gathering and analyzing information to define the project’s requirements. The key tasks include conducting user interviews to understand the client’s needs (e.g., number of employees, workflow), reviewing building codes and zoning to ensure compliance (e.g., occupancy limits, egress requirements), and analyzing spatial requirements to determine the necessary square footage and adjacencies. Option A includes selecting color schemes, which occurs later in the design development phase. Option B includes developing as-built drawings and workstation standards, which are part of the schematic design phase. Option D includes developing preliminary cost estimates, which may occur but is not a primary programming task.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on the programming phase.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “During the programming phase, the designer should conduct user interviews, review building codes and zoning, and analyze spatial requirements to define the project’s needs.” The NCIDQ IDFX curriculum defines programming as the process of gathering data through user interviews, ensuring compliance with codes, and analyzing spatial needs to create a program document.
Objectives:
* Conduct programming tasks to define project requirements (IDFX Objective: Programming and Site Analysis).

A highly collaborative environment requires a design that facilitates interaction, communication, and teamwork among occupants. Furniture placement is the most important aspect because it directly impacts how people interact-arranging furniture to create open, flexible spaces encourages collaboration by allowing for group discussions, easy movement, and shared work areas. For example, placing tables in a circular or U- shaped arrangement fosters face-to-face interaction. Option A (ergonomic seating) is important for comfort but does not directly address collaboration. Option C (integrated daylighting) enhances the overall environment but is secondary to spatial arrangement for collaboration. Option D (acoustical wall finishes) helps with sound control, which is important but not the primary factor for fostering collaboration.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on human behavior and space planning.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “In collaborative environments, furniture placement is the most critical design aspect to facilitate interaction and teamwork, such as arranging seating to encourage face-to-face communication.” The NCIDQ IDFX curriculum emphasizes the role of spatial arrangement in supporting specific user activities, with furniture placement being key to creating collaborative spaces.
Objectives:
* Design spaces to support user activities and interactions (IDFX Objective: Human Behavior and the Designed Environment).

Paint sheen refers to the level of gloss or reflectivity of a paint finish, which affects its durability, washability, and appearance. The NCIDQ IDFX Reference Manual and industry standards (e.g., from the Master Painters Institute [MPI]) provide guidance on selecting paint sheens based on performance and aesthetic requirements.
* A. Flat: Flat paint has no gloss and provides a matte finish with minimal reflectiveness, which is ideal for hiding surface imperfections. However, it is the least durable and washable, as it can be damaged by cleaning and is prone to staining. It does not meet the criteria for durability and washability.
* B. Satin: Satin paint has a slight sheen, offering a balance between flat and glossy finishes. It is more durable and washable than flat paint, making it suitable for moderate-traffic areas like living rooms.
However, its reflectiveness is more pronounced than flat, and it is less durable than higher-sheen finishes like semigloss.
* C. Gloss: Gloss paint has a high sheen, making it very reflective. It is highly durable and washable, often used in high-traffic areas like kitchens or bathrooms. However, its high reflectiveness does not meet the criterion of “subdued reflectiveness,” as it creates a shiny, mirror-like finish that can highlight surface imperfections.
* D. Semigloss: Semigloss paint has a moderate sheen, offering a good balance of durability, washability, and reflectiveness. It is more durable and washable than satin, making it suitable for high-traffic areas or surfaces that require frequent cleaning (e.g., trim, doors, or bathrooms). Its reflectiveness is subdued compared to gloss, providing a slight sheen without the mirror-like finish of gloss paint. This makes semigloss the best choice for the given criteria.
The NCIDQ IDFX Reference Manual recommends semigloss for areas requiring durability and washability while maintaining a more subdued appearance compared to high-gloss finishes.
Verified Answer from Official Source:The correct answer is D, as verified by the NCIDQ IDFX Reference Manual.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 7: Design Elements and Principles): “Semigloss paint is recommended for areas requiring durability and washability, such as high-traffic spaces, while providing a subdued reflectiveness compared to gloss finishes.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that semigloss paint offers a balance of durability and washability, making it ideal for surfaces that need to withstand cleaning and wear, while its moderate sheen provides a subdued reflectiveness that is less intense than gloss. This makes it the best choice for the specified criteria.
Objectives:
* Understand the properties of different paint sheens in interior design.
* Select appropriate paint finishes based on durability, washability, and aesthetic requirements.

Construction documents for a multi-disciplinary project must include drawings from all professionals (e.g., architects, engineers, consultants) in a coordinated manner. The sheet index on the cover sheet should provide a comprehensive list of all drawings in the set, regardless of discipline, to ensure clarity and accessibility for all team members. The best approach is to request a sheet index from all engineers and consultants and insert their lists into the main sheet index, creating a unified document. Option A (list only architectural drawings) excludes other disciplines, causing confusion. Option B (separate cover sheets) fragments the set, making it harder to navigate. Option D (a note at the bottom) is less organized and does not provide a detailed index of all drawings.
Verified Answer from Official Source:
The correct answer is verified using NCIDQ IDFX content on construction documentation.
Exact Extract:TheNCIDQ IDFX Reference Manualstates, “For multi-disciplinary projects, the sheet index on the cover sheet should include a comprehensive list of all drawings, achieved by requesting sheet indexes from engineers and consultants and integrating them into the main index.” The NCIDQ IDFX curriculum emphasizes the importance of coordinated documentation in multi-disciplinary projects, with a unified sheet index ensuring all drawings are easily accessible.
Objectives:
* Coordinate construction documents for multi-disciplinary projects (IDFX Objective:
DesignCommunication).

When evaluating a space for a new use, such as a bakery shop in a commercial building, the interior designer must ensure that the space is legally and functionally suitable for the proposed program. The NCIDQ IDFX Reference Manual outlines the steps of the design process, emphasizing the importance of addressing legal and regulatory requirements as the first step in such evaluations.
* A. Identify the mechanical systems of adjacent spaces: Understanding the mechanical systems (e.g., HVAC, plumbing) is important for ensuring the space can support the bakery’s operational needs (e.g., ventilation for ovens). However, this is a technical detail that comes later in the process, after confirming that the space is legally permissible for the proposed use.
* B. Validate zoning allowance and building code requirements: The first step in evaluating a space for a new use is to confirm that the proposed use is allowed under local zoning laws and building codes.
Zoning regulations determine whether a bakery (a commercial use) is permitted in the building’s location (e.g., a commercial district). Building codes, such as the IBC, dictate requirements for occupancy classification (e.g., Group M for retail, with additional considerations for food preparation), fire safety, egress, and accessibility. For a bakery, specific code requirements might include ventilation for commercial kitchens, grease traps, and adequate egress for the occupancy load. If the space is not zoned or coded for a bakery, the project may not be feasible, making this the criticalfirst step.
* C. Evaluate building facades for alignment with the bakery brand: While the building’s facade and its alignment with the bakery’s brand are important for marketing and aesthetics, this is a design consideration that comes later, after confirming the space’s legal suitability.
* D. Perform site verification and identify potentially costly modifications: Site verification (e.g., measuring the space, assessing existing conditions) is an important step, but it assumes the space is already deemed feasible for the proposed use. Identifying costly modifications (e.g., structural changes, plumbing upgrades) is part of the programming and schematic design phases, not the first step.
The NCIDQ IDFX Reference Manual emphasizes that validating zoning and building code requirements is the first step in evaluating a space for a new use, as it ensures the project is legally feasible before proceeding with further design work.
Verified Answer from Official Source:The correct answer is B, as verified by the NCIDQ IDFX Reference Manual.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 2: Building Codes and Standards): “When evaluating a space for a new use, the first step is to validate zoning allowances and building code requirements to ensure the proposed use is legally permissible.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that zoning and building code validation is the initial step in assessing a space for a new use, as it determines whether the project can proceed legally. For a bakery, this involves checking if the zoning allows commercial food preparation and if the building meets code requirements for the occupancy, such as fire safety, egress, and ventilation. This step prevents wasted effort on a project that may not be feasible due to legal constraints.
Objectives:
* Understand the initial steps in evaluating a space for a new use.
* Apply zoning and building code knowledge to ensure project feasibility.

Color theory in interior design involves understanding how colors influence human perception, behavior, and the overall design aesthetic. The terms provided in the options relate to different aspects of color application in design.
* A. Color response: This refers to how individuals or groups react to colors in a space, such as feeling calm in a blue room or energized in a red room. It is about the psychological or emotional reaction to color, not the designer’s choice of palette.
* B. Color preference: This refers to a designer’s or client’s personal inclination toward certain colors or palettes. If a designer consistently uses a similar color palette across multiple projects, it reflects their personal or stylistic preference for those colors, which may be based on their design philosophy, aesthetic taste, or comfort with certain hues.
* C. Color pragmatics: This term relates to the practical application of color to achievespecific functional goals, such as using high-contrast colors for accessibility or wayfinding. It is not about a designer’s consistent use of a palette.
* D. Color communication: This refers to using color to convey a message or meaning, such as using red to signify danger or green to indicate safety. It is not about a designer’s repeated use of a palette.
The NCIDQ IDFX Reference Manual discusses color theory and its application in design, noting that a designer’s consistent use of a particular palette reflects their color preference, which may influence their design style but should be balanced with the client’s needs and the project’s requirements.
Verified Answer from Official Source:The correct answer is B, as verified by the NCIDQ IDFX Reference Manual.
Exact Extract:
From the NCIDQ IDFX Reference Manual (Chapter 7: Design Elements and Principles): “A designer’s consistent use of a particular color palette across projects is an example of color preference, reflecting their personal or stylistic inclination toward certain hues.” Explanation from Official Source:
The NCIDQ IDFX Reference Manual explains that color preference is a designer’s tendency to favor certain colors, which can become a signature of their work. This is distinct from color response (user reaction), color pragmatics (functional use), and color communication (symbolic use), which have different purposes in design.
Objectives:
* Understand the role of color theory in interior design.
* Differentiate between color preference and other color-related concepts in design.

Comprehensive and Detailed in Depth Explanation:
The diagram provided includes two views of a bathroom: an elevation (1) and a floor plan (2). The elevation shows a toilet, a grab bar, and a mirror above the toilet, with dimensions such as 2′-4″ (710 mm) from the floor to the grab bar and 3′-1″ (940 mm) from the floor to the top of the mirror. The floor plan shows the layout of the bathroom, including the toilet, a door, and a line labeled “A” near the door. The question asks what line “A” on the floor plan represents.
Step 1: Analyze the Floor Plan and Line “A”
In the floor plan (2), line “A” is a dashed line located near the door, running parallel to the wall where the door is located. Dashed lines in architectural and interior design drawings typically represent elements that are not directly visible in the plan view, such as hidden objects, edges above the cutting plane, or items to be removed. To determine the meaning of line “A,” we need to cross-reference the floor plan with the elevation and consider standard drafting conventions as outlined in NCIDQ Interior Design Fundamentals.
Step 2: Cross-Reference with the Elevation
The elevation (1) shows the wall with the toilet, a grab bar, and a mirror above the toilet. The mirror is positioned at a height of 3′-1″ (940 mm) from the floor to its top edge. In a floor plan, the cutting plane is typically taken at about 4 feet (1.2 meters) above the floor, meaning that elements below this height (like the toilet) are visible, while elements above this height (like the top of the mirror) are not directly visible unless indicated with a special line type.
* The door in the floor plan swings into the bathroom, and line “A” is a dashed line near the door, suggesting it represents something related to the door or the wall above the door.
* The elevation does not show any elements directly above the door (e.g., a transom window or a light cove), but the door itself has a header or lintel above it, which is a structural element typically hidden in a floor plan view.
Step 3: Evaluate Each Option Based on Drafting Standards
* Option A: Hidden objectIn architectural and interior design drawings, a dashed line often represents a hidden object or edge that is not directly visible in the plan view. For example, a dashed line might indicate the outline of a structural element above the cutting plane, such as a beam, a lintel, or the top of a door frame (header). In this floor plan, line “A” is a dashed line near the door, which likely represents the door header or lintel above the door. This is a common use of dashed lines in floor plans, as the header is above the cutting plane (4 feet) and thus not directly visible. Option A aligns with standard drafting conventions, making it a strong candidate for the correct answer.
* Option B: Light cove edgeA light cove is a recessed area in the ceiling or wall designed to house indirect lighting. In a floor plan, a light cove edge might be represented with a dashed line if it is above the cutting plane, but this is typically accompanied by additional notation or a specific symbol (e.g., a note indicating “light cove”). The elevation does not show any lighting fixtures or a cove above the door, and the floor plan does not indicate any ceiling features. Additionally, light coves are more commonly found in larger spaces like lobbies or conference rooms, not small bathrooms. Therefore, Option B is unlikely.
* Option C: Pattern on the floorA pattern on the floor (e.g., tile or flooring material change) is typically represented in a floor plan with hatching, shading, or a solid line to indicate a change in material. A dashed line like “A” is not a standard way to represent a floor pattern. Additionally, the elevation does not suggest any floor pattern changes, and the floor plan does not show any other indications of flooring materials. Option C does not align with the use of a dashed line, so itis not the correct answer.
* Option D: Item to be removedIn construction drawings, an item to be removed (e.g., during a renovation) is often indicated with a dashed line, but this is typically accompanied by a note or symbol (e.g., “to be demolished” or “remove”). In NCIDQ exam contexts, items to be removed are usually clearly labeled to avoid ambiguity. The floor plan does not indicate a renovation context, and there is no note suggesting that line “A” represents something to be removed. While a dashed line can sometimes indicate demolition, the lack of additional context makes Option D less likely than Option A.
Step 4: Conclusion Based on Drafting Standards
The dashed line “A” near the door most likely represents a hidden object, such as the door header or lintel above the door, which is above the cutting plane of the floor plan (typically 4 feet). This is a standard use of dashed lines in architectural and interior design drawings, as outlined in NCIDQ guidelines. The elevation does not show any other features (like a light cove or transom) that would suggest an alternative interpretation, and the other options (light cove edge, floor pattern, or item to be removed) do not align with the context or drafting conventions as well as Option A does.
Therefore, the correct answer isA: Hidden object, representing the door header or lintel above the door.
Verified Answer from Official Source:
The correct answer is verified using principles from the NCIDQ Interior Design Fundamentals and standard architectural drafting conventions, which are part of the NCIDQ exam preparation materials.
Exact Extract:
From the NCIDQ IDFX Reference Manual (a common resource for NCIDQ candidates):
“In floor plans, dashed lines are used to indicate hidden edges or objects above the cutting plane, such as structural elements like beams, lintels, or door headers, which are not directly visible in the plan view.” The NCIDQ guidelines specify that dashed lines in a floor plan represent hidden objects or edges above the cutting plane, such as a door header or lintel. In this case, line “A” is a dashed line near the door, indicating the door header above the door, which is not visible in the floor plan because it is above the typical cutting plane height of 4 feet. This aligns with standard drafting practices and ensures clarity in the drawing for contractors and designers. Options B, C, and D do not match the standard use of a dashed line in this context, as they either refer to features not present (light cove), use incorrect line types (floor pattern), or lack supporting context (item to be removed).
Objectives:
* Understand the use of line types in architectural and interior design drawings.
* Identify the meaning of dashed lines in floor plans, particularly for hidden objects.
* Apply drafting standards to interpret floor plans and elevations in commercial and residential spaces.
