Telnet: Telnet is a protocol used to establish remote connections to devices for administration. It directly communicates with devices on the network and is the best tool for identifying and accessing devices that support it on the subnet.
dig (A): Used for DNS queries, unrelated to Telnet.
runap (B): Not a recognized tool in this context.
tracert (C): Tracks the path to a host but does not establish direct connections.

The tracert (Traceroute) command is used to determine the path packets take from the source to the destination. It helps in identifying routing issues by showing each hop the packets pass through, along with the time taken for each hop. This command can pinpoint where the connection is failing or experiencing delays, making it an essential tool for troubleshooting routing issues.
Reference: CompTIA Network+ study materials and common network troubleshooting commands.

See the solution configuration below in Explanation.

ANS
Explanation:
Role of the Hosts File:
The hosts file is a local file on a computer that maps hostnames to IP addresses. It can be used to override DNS resolution by providing a static mapping of a hostname to an IP address.
Common Issues with the Hosts File:
If an incorrect IP address is mapped to a hostname in the hosts file, it can cause the computer to resolve the hostname to the wrong IP address. This can lead to navigation issues for specific websites while other users, relying on DNS, do not face the same problem.
Why Other Options are Less Likely:
Self-signed certificate: Relates to SSL/TLS and would cause a security warning, not a navigation failure.
Nameserver record: Affects all users, not just one.
IP helper: Used to forward DHCP requests and is unrelated to DNS resolution issues.
Troubleshooting Steps:
Check the hosts file on the affected user’s computer (C:\Windows\System32\drivers\etc\hosts on Windows or /etc/hosts on Unix/Linux).
Look for entries that map the problematic hostname to an incorrect IP address and correct or remove them.
Reference:
CompTIA Network+ study materials and system administration documentation.

A Client-to-Site VPN allows a remote user to securely connect to a company’s internal network, providing access as if they were physically on-site.

* Understanding Link Aggregation:
* Definition: Link aggregation combines multiple network connections into a single logical link to increase bandwidth and provide redundancy.
* Usage in High-Bandwidth Scenarios:
* Combining Links: By aggregating multiple 1Gbps connections, the facility can utilize the full 2.5 Gbps bandwidth provided by the ISP.
* Benefits: Enhanced throughput, load balancing, and redundancy, ensuring better utilization of available bandwidth.
* Comparison with Other Options:
* 802.1Q Tagging: Used for VLAN tagging, which does not affect the physical bandwidth utilization.
* Network Address Translation (NAT): Used for IP address translation, not related to link speed or bandwidth aggregation.
* Port Duplex: Refers to the mode of communication (full or half duplex) on a port, not the aggregation of bandwidth.
* Implementation:
* Configure link aggregation (often referred to as LACP – Link Aggregation Control Protocol) on network devices to combine multiple physical links into one logical link.
References:
* CompTIA Network+ study materials on network configuration and link aggregation.

Definition of Fiber Connector Types:
LC (Lucent Connector): A small form-factor fiber optic connector with a push-pull latching mechanism, commonly used for high-density applications.
SC (Subscriber Connector or Standard Connector): A larger form-factor connector with a push-pull latching mechanism, often used in datacom and telecom applications.
ST (Straight Tip): A bayonet-style connector, typically used in multimode fiber optic networks.
MPO (Multi-fiber Push On): A connector designed to support multiple fibers (typically 12 or 24 fibers), used in high-density cabling environments.
Common Usage:
LC Connectors: Due to their small size, LC connectors are widely used in network interface cards (NICs) and high-density environments such as data centers. They allow for more connections in a smaller space compared to SC and ST connectors.
SC and ST Connectors: These are larger and more commonly used in patch panels and older fiber installations but are less suitable for high-density applications.
MPO Connectors: Primarily used for trunk cables in data centers and high-density applications but not typically on individual network interface cards.
Selection Criteria:
The small form-factor and high-density capabilities of LC connectors make them the preferred choice for network interface cards, where space and connection density are critical considerations.
Reference:
CompTIA Network+ study materials on fiber optics and connector types.

When a DHCP server is installed and not enough IP addresses are provisioned, users may start experiencing network outages once the available IP addresses are exhausted. DHCP servers assign IP addresses to devices on the network, and if the pool of addresses is too small, new devices or those renewing their lease may fail to obtain an IP address, resulting in network connectivity issues.
Reference: CompTIA Network+ study materials.

* Definition of Heat Maps:
* A heat map is a graphical representation of data where individual values are represented by colors.
In the context of wireless networking, a heat map shows the wireless signal strength in different areas of a building.
* Purpose of a Heat Map:
* Heat maps are used to illustrate the effectiveness of wireless networking coverage, identify dead zones, and optimize the placement of access points (APs) to ensure adequate coverage and performance.
* Comparison with Other Options:
* Logical Diagram:Represents the logical connections and relationships within the network.
* Layer 3 Network Diagram:Focuses on the routing and IP addressing within the network.
* Service-Level Agreement (SLA):A contract that specifies the expected service levels between a service provider and a customer.
* Creation and Use:
* Heat maps are created using specialized software or tools that measure wireless signal strength throughout the building. The data collected is then used to generate a visual map, guiding network administrators in optimizing wireless coverage.
References:
* CompTIA Network+ certification materials and wireless network planning guides.

* Definition of MAC Flooding:
* MAC flooding is an attack where a malicious actor sends numerous fake MAC addresses to a switch, overwhelming its CAM table. The CAM table stores MAC addresses and their associated ports for efficient traffic forwarding.
* Impact of MAC Flooding:
* CAM Table Overflow: When the CAM table is full, the switch cannot learn new MAC addresses and is forced to broadcast traffic to all ports, leading to a degraded network performance and
* potential data interception.
* Switch Behavior: The switch operates in a fail-open mode, treating the network as a hub, which can be exploited for eavesdropping on traffic.
* Comparison with Other Attacks:
* ARP Spoofing: Involves sending false ARP (Address Resolution Protocol) messages to associate the attacker’s MAC address with the IP address of another device.
* Evil Twin: Involves creating a rogue wireless access point that mimics a legitimate one to intercept data.
* DNS Poisoning: Involves corrupting the DNS cache with false information to redirect traffic to malicious sites.
* Preventive Measures:
* Port Security: Configure port security on switches to limit the number of MAC addresses per port, preventing CAM table overflow.
* Network Segmentation: Use VLANs to segment network traffic and limit the impact of such attacks.
References:
* CompTIA Network+ study materials on network security threats and mitigation techniques.

A split-tunnel VPN allows some traffic to be routed through the VPN while other traffic goes directly to the internet. This setup offers several advantages, with a primary one being cost-effectiveness due to cloud-based traffic not consuming company bandwidth.
* Bandwidth Utilization: Split-tunnel VPNs reduce the amount of traffic passing through the company’s network, freeing up bandwidth for other uses.
* Performance: By allowing internet-bound traffic to bypass the VPN, it can reduce latency and improve the performance for users accessing cloud services directly.
* Cost Savings: Reduced load on the company’s VPN infrastructure can lead to lower costs in terms of both hardware and bandwidth.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Covers VPN types, including split-tunnel configurations and their advantages.
* Cisco Networking Academy: Discusses VPN technologies and the benefits of split-tunneling.
* Network+ Certification All-in-One Exam Guide: Provides detailed information on VPN setups, including the cost-effectiveness of split-tunnel VPNs.
By allowing cloud-based traffic to flow outside the company’s network, a split-tunnel VPN optimizes resource usage and enhances the overall network performance without incurring extra costs for bandwidth.

Direct Connect refers to a dedicated network connection between an on-premises network and a cloud service provider (such as AWS Direct Connect). This link bypasses the public internet, providing a more reliable and higher-bandwidth connection. It may not inherently include encryption because it relies on the security measures of the dedicated physical connection itself. In contrast, other options like VPN typically involve encryption as they traverse the public internet.

Explanation: A Client-to-Site VPN allows a remote user to securely connect to a company’s internal network, providing access as if they were physically on-site.

Using a /30 subnet mask is the most efficient way to conserve IP space for a point-to-point connection between two routers. A /30 subnet provides four IP addresses, two of which can be assigned to the router interfaces, one for the network address, and one for the broadcast address. This makes it ideal for point-to-point links where only two usable IP addresses are needed.
Reference: CompTIA Network+ study materials and subnetting principles.

Introduction to Disaster Recovery Concepts:
Disaster recovery involves strategies and measures to ensure business continuity and data recovery in the event of a disaster.
Mean Time Between Failures (MTBF):
MTBF is a reliability metric used to predict the time between failures of a system during operation. It is calculated by dividing the total operational time by the number of failures.
Formula: MTBF=Total Operational TimeNumber of Failures\text{MTBF} = \frac{\text{Total Operational Time}}{\text{Number of Failures}}MTBF=Number of FailuresTotal Operational Time This metric helps in understanding the reliability and expected lifespan of systems and components.
Example Calculation:
If a server operates for 1000 hours and experiences 2 failures, the MTBF is: MTBF=1000 hours2=500 hours\text{MTBF} = \frac{1000 \text{ hours}}{2} = 500 \text{ hours}MTBF=21000 hours=500 hours Explanation of the Options:
A . MTTR (Mean Time to Repair): The average time required to repair a system after a failure.
B . MTBF (Mean Time Between Failures): The correct answer, representing the average time between failures.
C . RPO (Recovery Point Objective): The maximum acceptable amount of data loss measured in time.
D . RTO (Recovery Time Objective): The target time set for the recovery of IT and business activities after a disaster.
Conclusion:
MTBF is a crucial metric in disaster recovery and system reliability, helping organizations plan maintenance and predict system performance.
Reference:
CompTIA Network+ guide explaining MTBF, MTTR, RPO, and RTO concepts and their calculations (see page Ref 10fHow to Use Cisco Packet Tracer).

See the solution in Explanation.
Explanation:

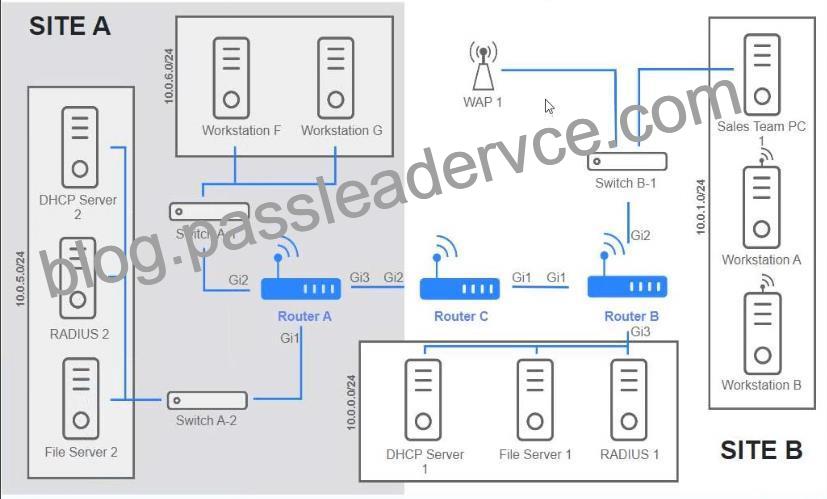

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:
* Review Routing Tables:
* Check the routing tables of Router A, Router B, and Router C to identify any missing routes.
* Identify Missing Routes:
* Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.
* Add Static Routes:
* If a route is missing, add a static route to the relevant destination network via the correct interface.

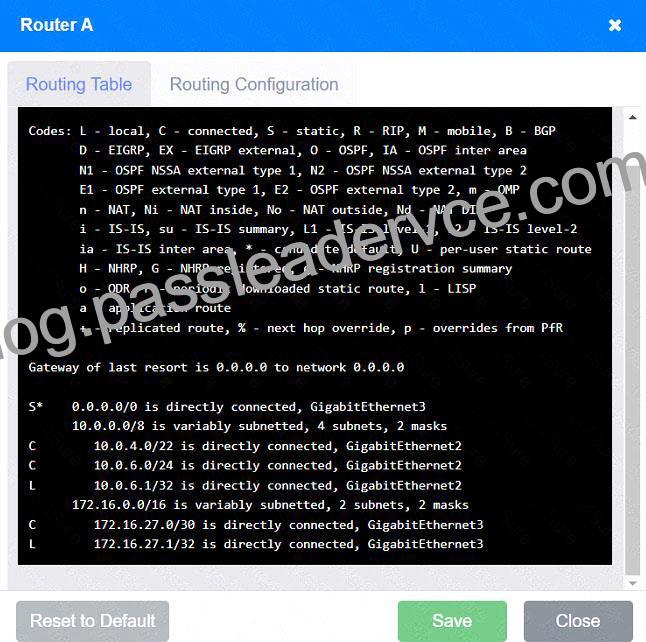

* Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet3
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.4.0/22 is directly connected, GigabitEthernet2
C 10.0.6.0/24 is directly connected, GigabitEthernet2
L 10.0.6.1/32 is directly connected, GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet3
L 172.16.27.1/32 is directly connected, GigabitEthernet3

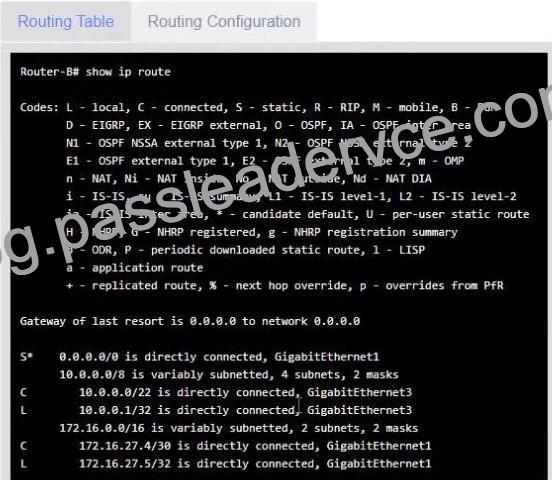

* Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet1
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.0.0/22 is directly connected, GigabitEthernet1
L 10.0.0.1/32 is directly connected, GigabitEthernet1
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.5/32 is directly connected, GigabitEthernet1

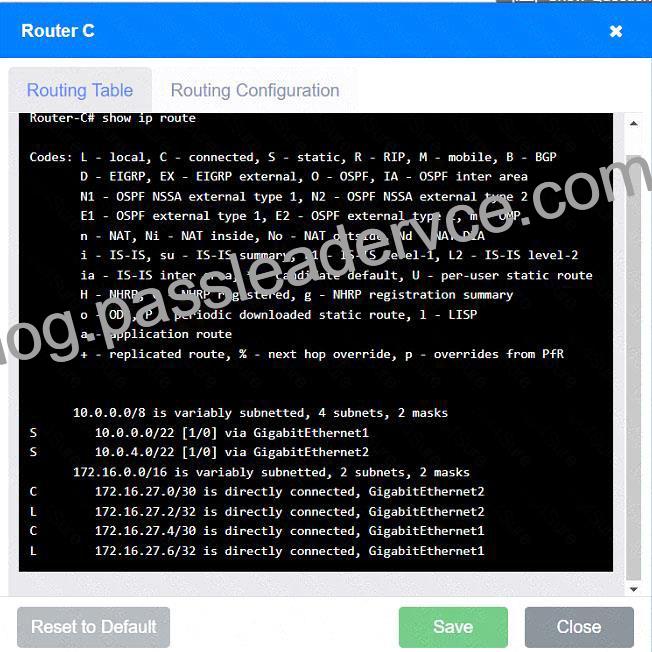

* Routing Table:

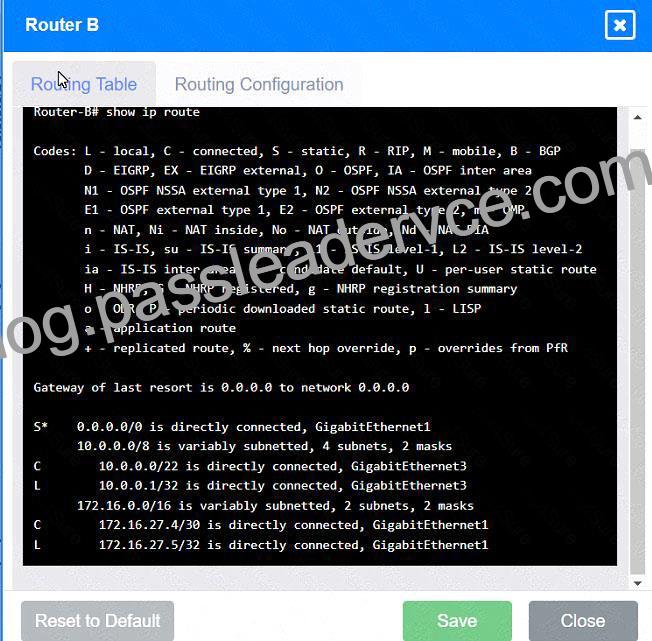

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
S 10.0.0.0/22 [1/0] via GigabitEthernet1
S 10.0.4.0/22 [1/0] via GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet2
L 172.16.27.2/32 is directly connected, GigabitEthernet2
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.6/32 is directly connected, GigabitEthernet1

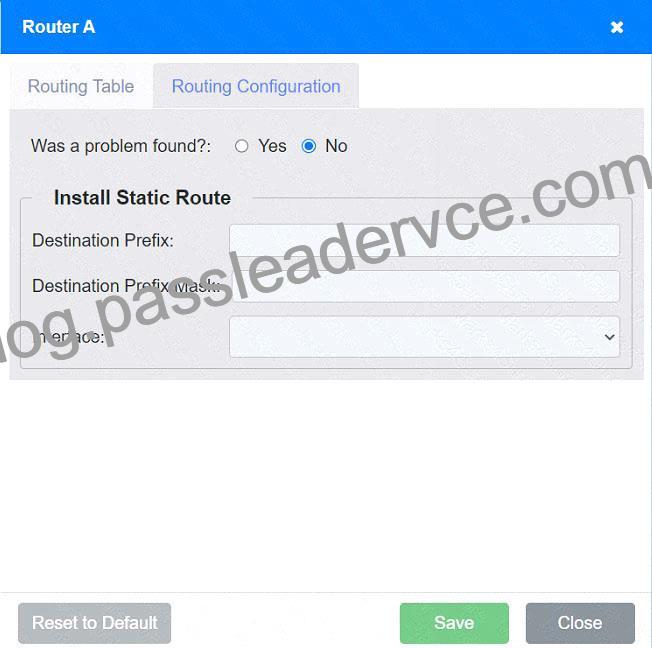

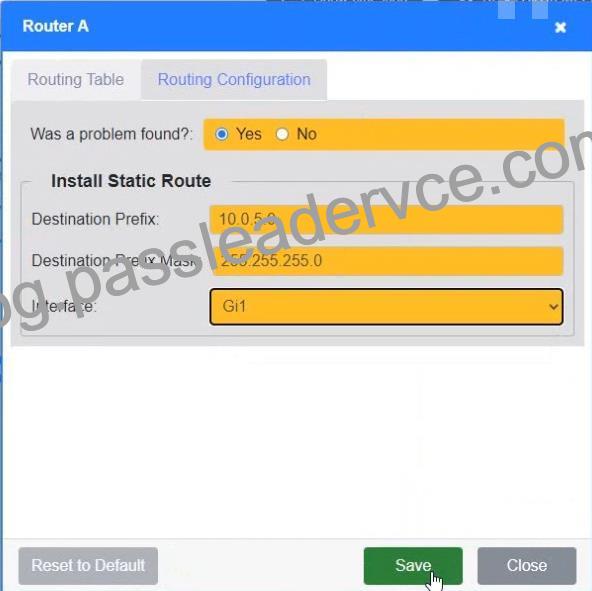

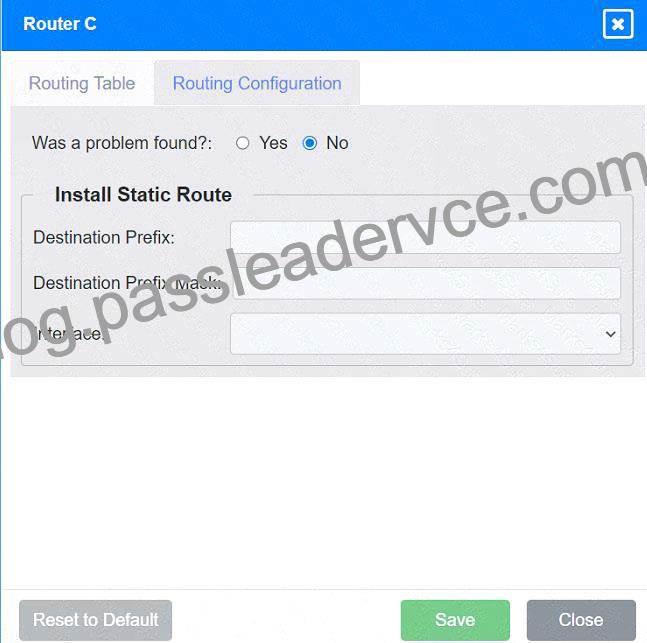

* Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C’s IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet3

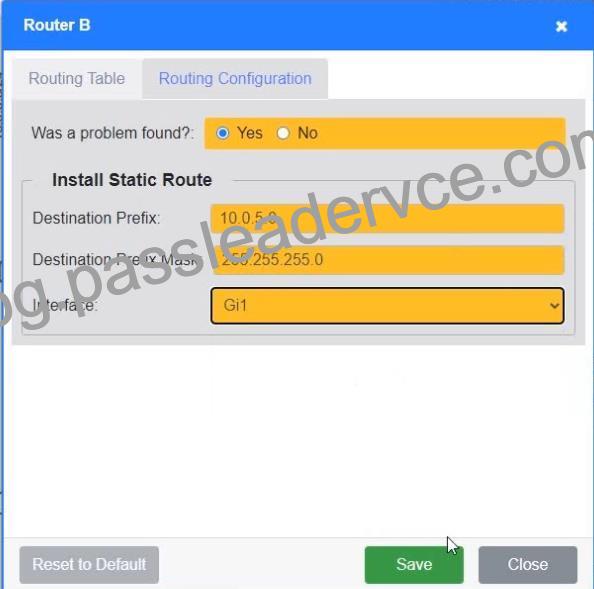

* Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C’s IP is 172.16.27.5):
Destination Prefix: 10.0.4.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1

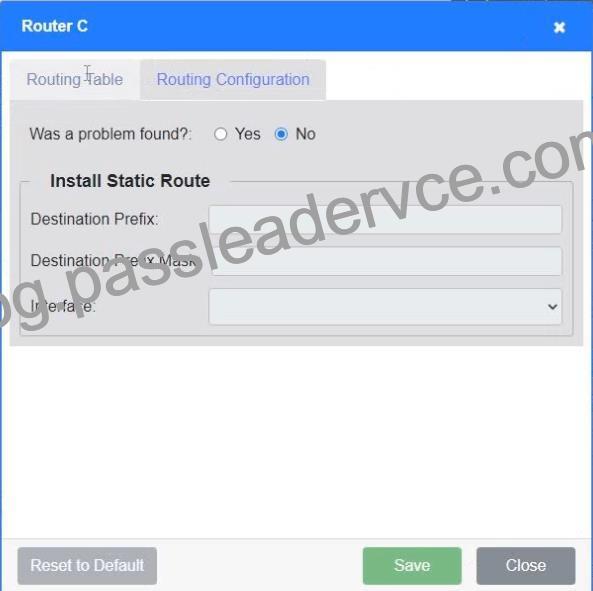

* Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A’s IP is 172.16.27.2):
Destination Prefix: 10.0.6.0
Destination Prefix Mask: 255.255.255.0
Interface: GigabitEthernet2

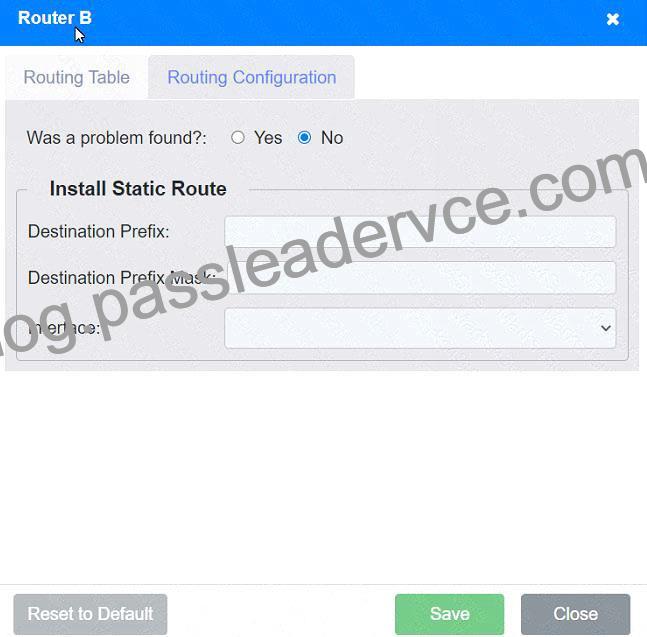

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B’s IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Summary of Static Routes:
* Router A:
* ip route 10.0.0.0 255.255.252.0 GigabitEthernet3
* Router B:
* ip route 10.0.4.0 255.255.252.0 GigabitEthernet1
* Router C:
* ip route 10.0.6.0 255.255.255.0 GigabitEthernet2
* ip route 10.0.0.0 255.255.252.0 GigabitEthernet1
These configurations ensure that each router knows the correct paths to reach Workstation A and File Server
2, resolving the connectivity issue.

See the answer and solution below.
Explanation:
Network Health:
WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

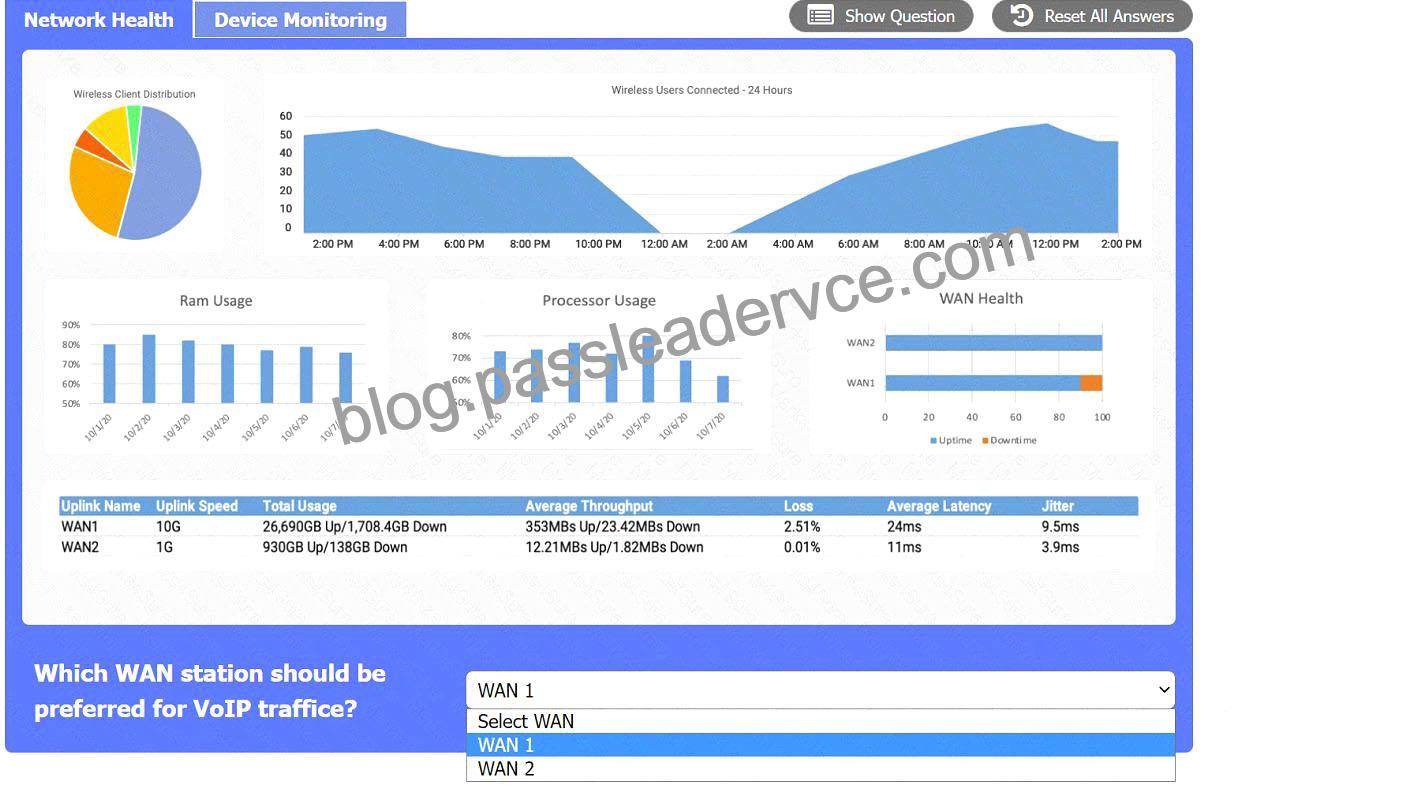

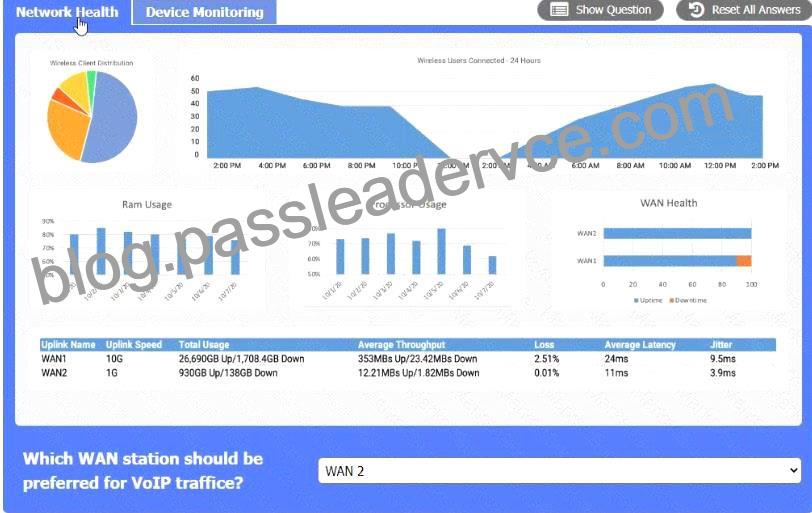

Here’s the summary of the key metrics for WAN 1 and WAN 2 from the image provided:
* WAN 1:
* Uplink Speed: 10G
* Total Usage: 26.969GB Up / 1.748GB Down
* Average Throughput: 353MBps Up / 23.42MBps Down
* Loss: 2.51%
* Average Latency: 24ms
* Jitter: 9.5ms
* WAN 2:
* Uplink Speed: 1G
* Total Usage: 930GB Up / 138GB Down
* Average Throughput: 12.21MBps Up / 1.82MBps Down
* Loss: 0.01%
* Average Latency: 11ms
* Jitter: 3.9ms
For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.
Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

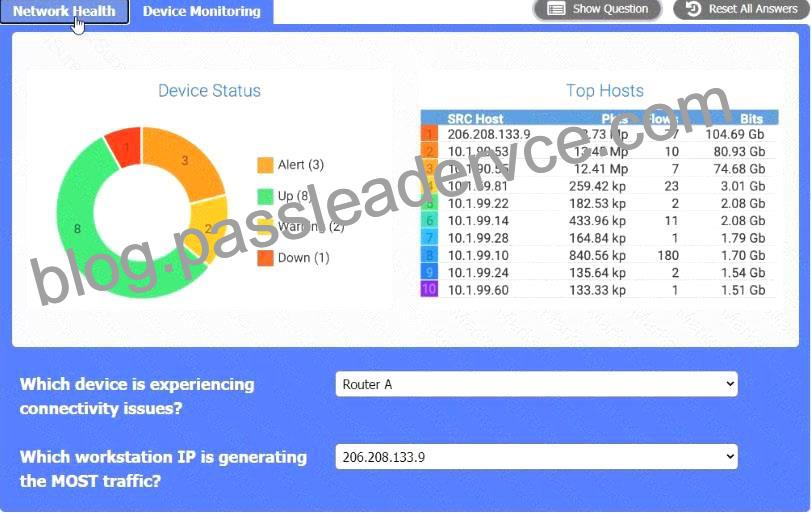

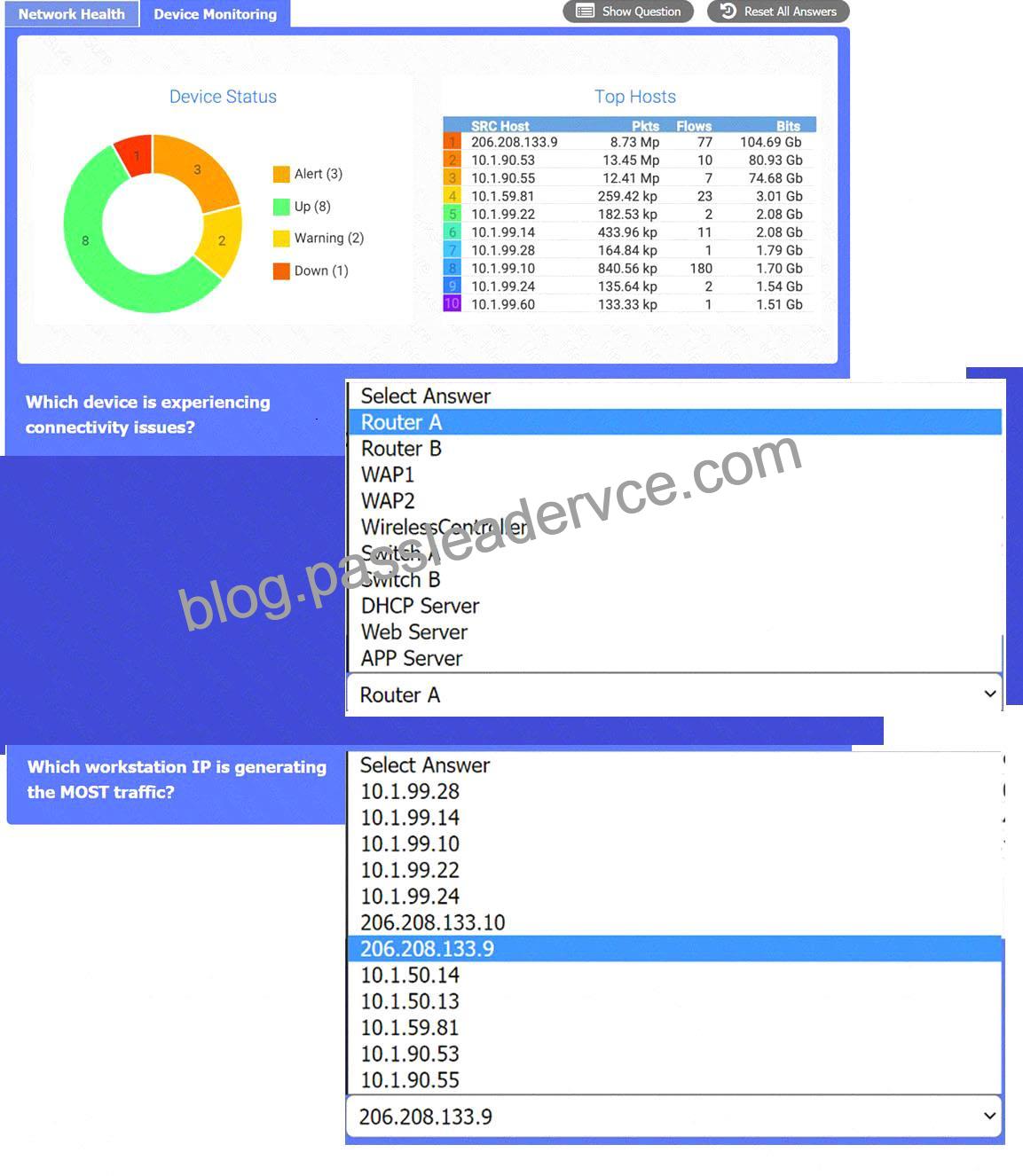

Device Monitoring:
the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down
. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

X.509 certificates are most commonly associated with Public Key Infrastructure (PKI). These certificates are used for a variety of security functions, including digital signatures, encryption, and authentication.
* PKI: X.509 certificates are a fundamental component of PKI, used to manage encryption keys and authenticate users and devices.
* Digital Certificates: They are used to establish secure communications over networks, such as SSL
/TLS for websites and secure email communication.
* Authentication and Encryption: X.509 certificates provide the means to securely exchange keys and verify identities in various applications, ensuring data integrity and confidentiality.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Covers PKI and the role of X.509 certificates in network security.
* Cisco Networking Academy: Provides training on PKI, certificates, and secure communications.
* Network+ Certification All-in-One Exam Guide: Explains PKI, X.509 certificates, and their applications in securing network communications.

See the answer and solution below
Explanation:

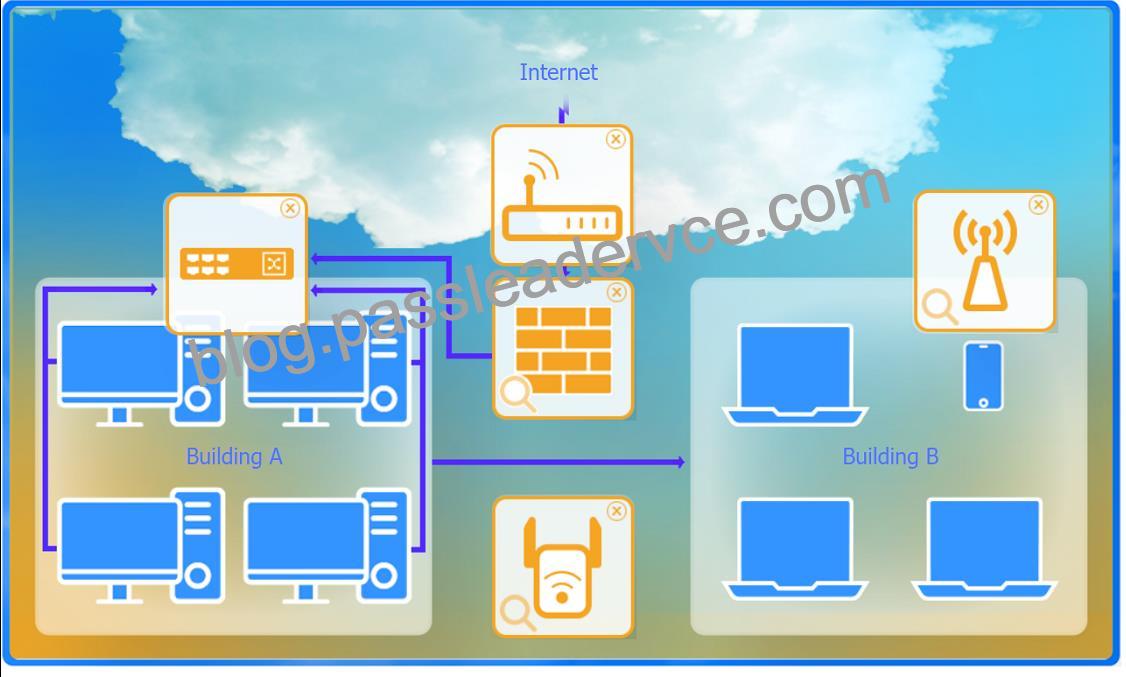

Devices in both buildings should be able to access the Internet.

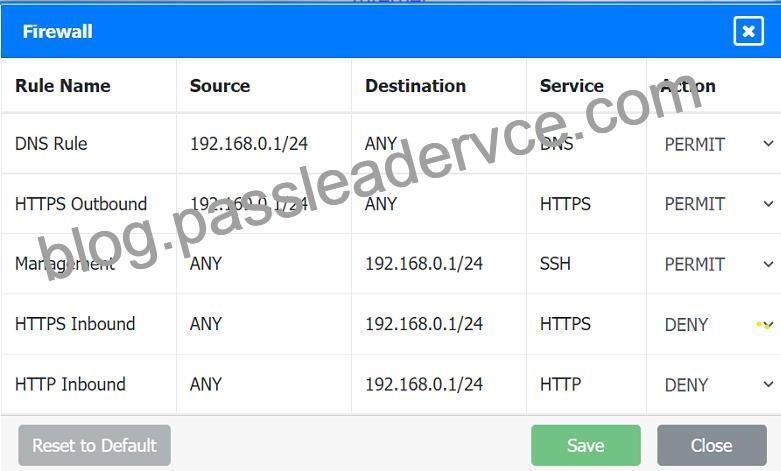

Security insists that all Internet traffic be inspected before entering the network.
Desktops should not see traffic destined for other devices.

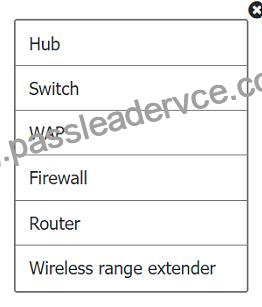

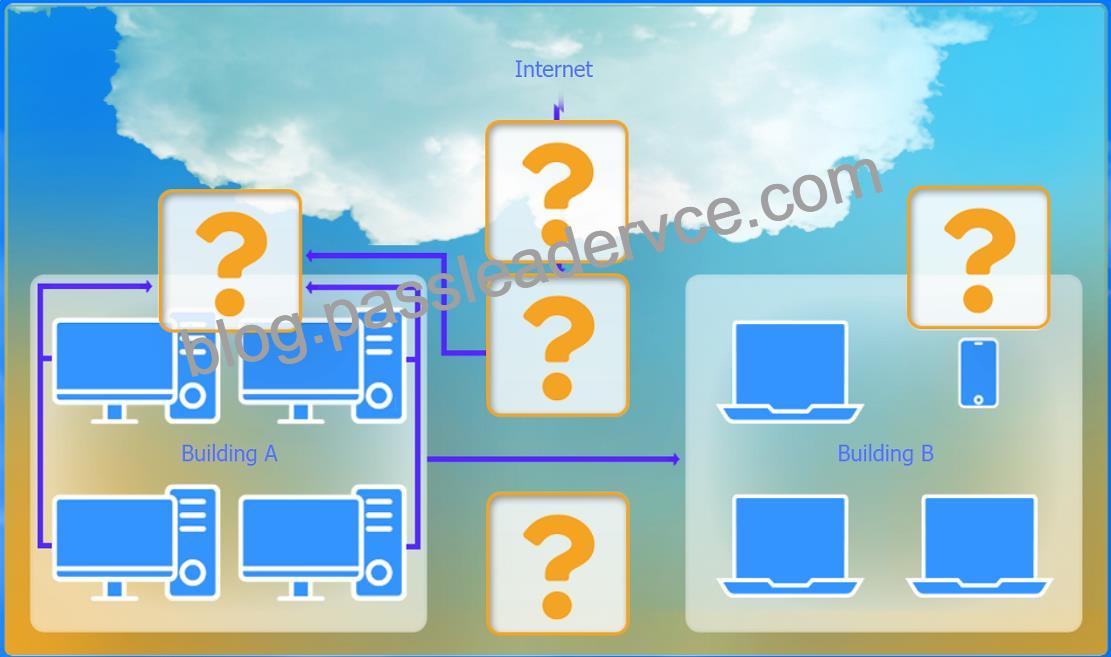

Here is the corrected layout with explanation:
Building A:
Switch: Correctly placed to connect all desktops.
Firewall: Correctly placed to inspect all incoming and outgoing traffic.
Building B:
Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
Between Buildings:
Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
Connection to the Internet:
Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
Corrected Setup:
Top-left (Building A): Switch
Bottom-left (Building A): Firewall (inspect traffic before it enters the network) Top-middle (Internet connection): Router Bottom-middle (between buildings): Wireless Range Extender Top-right (Building B): Wireless Access Point (WAP) In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

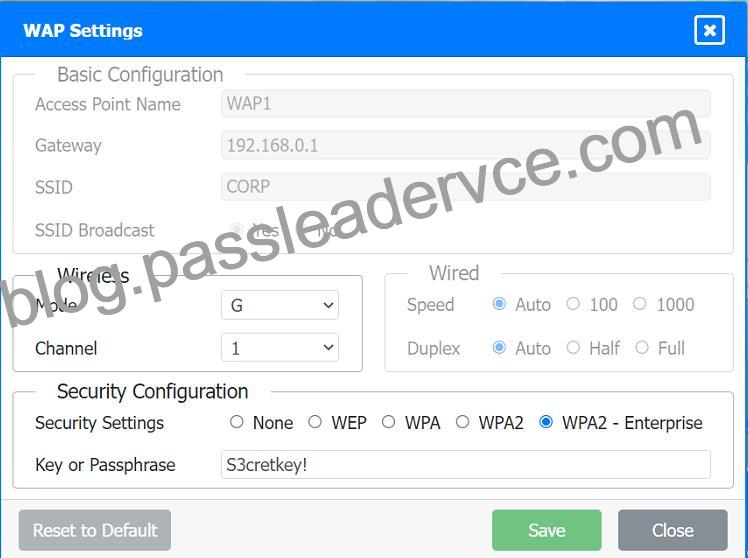

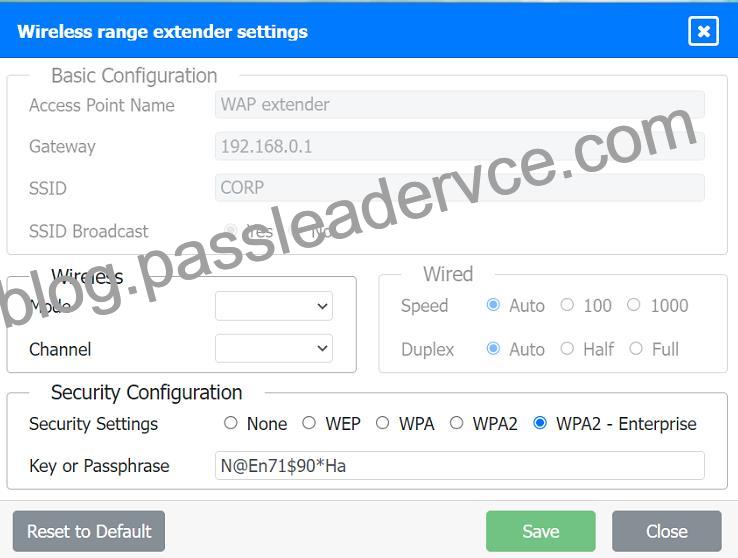

Configuration for Wireless Range Extender:
SSID: CORP
Security Settings: WPA2 or WPA2 – Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

To configure the wireless range extender for security, follow these steps:
SSID (Service Set Identifier):
Ensure the SSID is set to “CORP” as shown in the exhibit.
Security Settings:
WPA2 or WPA2 – Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
Key or Passphrase:
If you select WPA2, enter a strong passphrase in the “Key or Passphrase” field.
If you select WPA2 – Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
Wireless Mode and Channel:
Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
Wired Speed and Duplex:
Set the speed to “Auto” unless you have specific requirements for 100 or 1000 Mbps.
Set the duplex to “Auto” unless you need to specify half or full duplex based on your network equipment.
Save Configuration:
After making the necessary changes, click the “Save” button to apply the settings.
Here is how the configuration should look after adjustments:
SSID: CORP
Security Settings: WPA2 or WPA2 – Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.
Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.
Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
Suggested Additional Settings:
Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
Firewall Configuration Adjustments:
Correct the Network Typo:
Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
Permit General Outbound Traffic:
Rule Name: General Outbound
Source: 192.168.0.1/24
Destination: ANY
Service: ANY
Action: PERMIT
Deny All Other Traffic:
Rule Name: Block All
Source: ANY
Destination: ANY
Service: ANY
Action: DENY
Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
Internal devices can access DNS and HTTPS services externally.
Management access via SSH is permitted.
Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
General outbound traffic is allowed.
All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.

When working with fiber optic cables, one common issue is that the transmit (TX) and receive (RX) fibers might be reversed. The first step in troubleshooting should be to reverse the fibers at one end to ensure they are correctly aligned (TX to RX and RX to TX). This is a simple and quick step to rule out a common issue before moving on to more complex troubleshooting.
Reference: CompTIA Network+ study materials.
